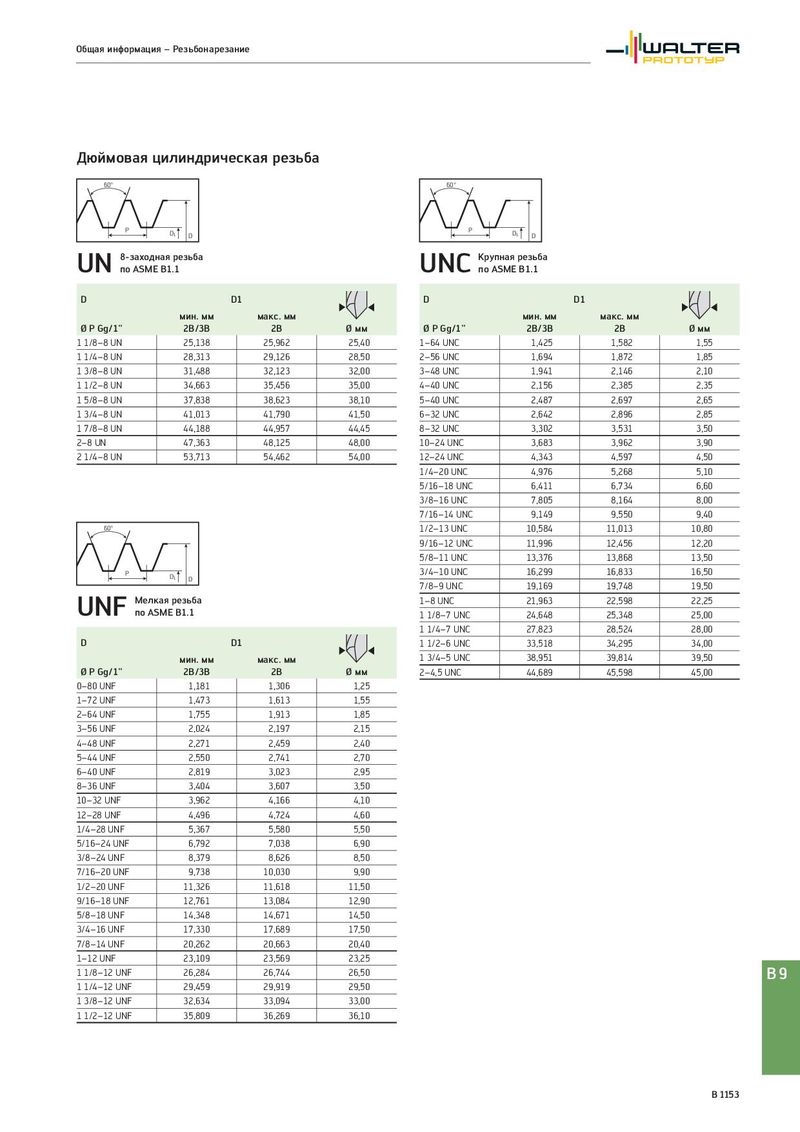

Общая информация – Резьбонарезание Дюймовая цилиндрическая резьба 60° 60° P D1 P D1 D D UN 8-заходная резьба UNC Крупная резьба по ASME B1.1 по ASME B1.1 D D1 D D1 мин. мм макс. мм мин. мм макс. мм Ø P Gg/1" 2B/3B 2B Ø мм Ø P Gg/1" 2B/3B 2B Ø мм 1 1/8–8 UN 25,138 25,962 25,40 1–64 UNC 1,425 1,582 1,55 1 1/4–8 UN 28,313 29,126 28,50 2–56 UNC 1,694 1,872 1,85 1 3/8–8 UN 31,488 32,123 32,00 3–48 UNC 1,941 2,146 2,10 1 1/2–8 UN 34,663 35,456 35,00 4–40 UNC 2,156 2,385 2,35 1 5/8–8 UN 37,838 38,623 38,10 5–40 UNC 2,487 2,697 2,65 1 3/4–8 UN 41,013 41,790 41,50 6–32 UNC 2,642 2,896 2,85 1 7/8–8 UN 44,188 44,957 44,45 8–32 UNC 3,302 3,531 3,50 2–8 UN 47,363 48,125 48,00 10–24 UNC 3,683 3,962 3,90 2 1/4–8 UN 53,713 54,462 54,00 12–24 UNC 4,343 4,597 4,50 1/4–20 UNC 4,976 5,268 5,10 5/16–18 UNC 6,411 6,734 6,60 3/8–16 UNC 7,805 8,164 8,00 7/16–14 UNC 9,149 9,550 9,40 60° 1/2–13 UNC 10,584 11,013 10,80 9/16–12 UNC 11,996 12,456 12,20 5/8–11 UNC 13,376 13,868 13,50 P D1 3/4–10 UNC 16,299 16,833 16,50 D 7/8–9 UNC 19,169 19,748 19,50 UNF Мелкая резьба 1–8 UNC 21,963 22,598 22,25 по ASME B1.1 1 1/8–7 UNC 24,648 25,348 25,00 1 1/4–7 UNC 27,823 28,524 28,00 D D1 1 1/2–6 UNC 33,518 34,295 34,00 мин. мм макс. мм 1 3/4–5 UNC 38,951 39,814 39,50 Ø P Gg/1" 2B/3B 2B Ø мм 2–4,5 UNC 44,689 45,598 45,00 0–80 UNF 1,181 1,306 1,25 1–72 UNF 1,473 1,613 1,55 2–64 UNF 1,755 1,913 1,85 3–56 UNF 2,024 2,197 2,15 4–48 UNF 2,271 2,459 2,40 5–44 UNF 2,550 2,741 2,70 6–40 UNF 2,819 3,023 2,95 8–36 UNF 3,404 3,607 3,50 10–32 UNF 3,962 4,166 4,10 12–28 UNF 4,496 4,724 4,60 1/4–28 UNF 5,367 5,580 5,50 5/16–24 UNF 6,792 7,038 6,90 3/8–24 UNF 8,379 8,626 8,50 7/16–20 UNF 9,738 10,030 9,90 1/2–20 UNF 11,326 11,618 11,50 9/16–18 UNF 12,761 13,084 12,90 5/8–18 UNF 14,348 14,671 14,50 3/4–16 UNF 17,330 17,689 17,50 7/8–14 UNF 20,262 20,663 20,40 1–12 UNF 23,109 23,569 23,25 1 1/8–12 UNF 26,284 26,744 26,50 B9 1 1/4–12 UNF 29,459 29,919 29,50 1 3/8–12 UNF 32,634 33,094 33,00 1 1/2–12 UNF 35,809 36,269 36,10 B 1153
