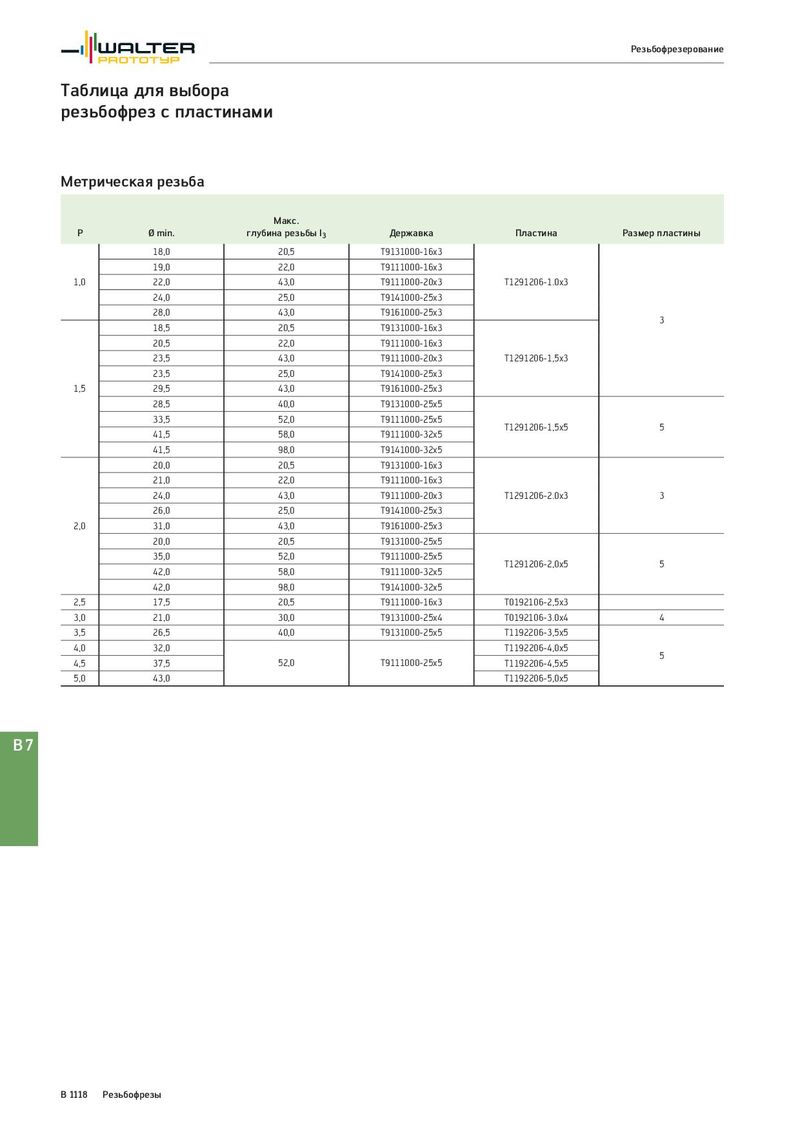

Общий каталог Walter 2017 - страница 1632

Резьбофрезерование Таблица для выбора резьбофрез с пластинами Метрическая резьба Макс. P Ø min. глубина резьбы l3 Державка Пластина Размер пластины 18,0 20,5 T9131000-16x3 19,0 22,0 T9111000-16x3 1,0 22,0 43,0 T9111000-20x3 T1291206-1.0x3 24,0 25,0 T9141000-25x3 28,0 43,0 T9161000-25x3 3 18,5 20,5 T9131000-16x3 20,5 22,0 T9111000-16x3 23,5 43,0 T9111000-20x3 T1291206-1,5x3 23,5 25,0 T9141000-25x3 1,5 29,5 43,0 T9161000-25x3 28,5 40,0 T9131000-25x5 33,5 52,0 T9111000-25x5 T1291206-1,5x5 5 41,5 58,0 T9111000-32x5 41,5 98,0 T9141000-32x5 20,0 20,5 T9131000-16x3 21,0 22,0 T9111000-16x3 24,0 43,0 T9111000-20x3 T1291206-2.0x3 3 26,0 25,0 T9141000-25x3 2,0 31,0 43,0 T9161000-25x3 20,0 20,5 T9131000-25x5 35,0 52,0 T9111000-25x5 T1291206-2,0x5 5 42,0 58,0 T9111000-32x5 42,0 98,0 T9141000-32x5 2,5 17,5 20,5 T9111000-16x3 T0192106-2,5x3 3,0 21,0 30,0 T9131000-25x4 T0192106-3.0x4 4 3,5 26,5 40,0 T9131000-25x5 T1192206-3,5x5 4,0 32,0 T1192206-4,0x5 5 4,5 37,5 52,0 T9111000-25x5 T1192206-4,5x5 5,0 43,0 T1192206-5,0x5 B7 B 1118 Резьбофрезы
