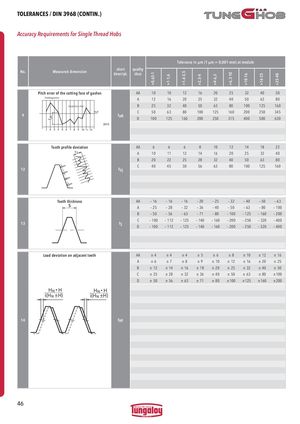

TOLERANCES / DIN 3968 (CONTIN.)

		short	quality			Tolerance	in µm (1	µm = 0,0	01 mm) a	t module
No.	Measured dimension	descript.	class	>0,63-1	>1-1,6	>1,6-2,5	>2,5-4	>4-6,3	>6,3-10	>10-16	>16-25	>25-40
	Pitch error of the cutting face of gashes		AA	10	10	12	16	20	25	32	40	50
	Prüfdiagramm		A	12	16	20	25	32	40	50	63	80
	/Inspection chart		B	25	32	40	50	63	80	100	125	160
	Null		C	50	63	80	100	125	160	200	250	345
9	1 2 3 4 5 6 7 8 9 10 11 12 fuN zero	fuN	D	100	125	160	200	250	315	400	500	630
	Tooth profile deviation		AA	6	6	6	8	10	12	14	18	22
	FfS		A	10	11	12	14	16	20	25	32	40
			B	20	22	25	28	32	40	50	63	80
			C	40	45	50	56	63	80	100	125	160
12		FfS
	Tooth thickness		AA	– 16	– 16	– 16	– 20	– 25	– 32	– 40	– 50	– 63
	S		A	– 25	– 28	– 32	– 36	– 40	– 50	– 63	– 80	– 100
			B	– 50	– 56	– 63	– 71	– 80	– 100	– 125	– 160	– 200
			C	– 100	– 112	– 125	– 140	– 160	– 200	– 250	– 320	– 400
13		fS	D	– 100	– 112	– 125	– 140	– 160	– 200	– 250	– 320	– 400
	Lead deviation on adjacent teeth		AA	± 4	± 4	± 4	± 5	± 6	± 8	± 10	± 12	± 16
			A	± 6	± 7	± 8	± 9	± 10	± 12	± 16	± 20	± 25
			B	± 12	± 14	± 16	± 18	± 20	± 25	± 32	± 40	± 50
			C	± 25	± 28	± 32	± 36	± 40	± 50	± 63	± 80	±100
			D	± 50	± 56	± 63	± 71	± 80	±100	±125	±160	±200
	HN •H iHH HN •H
	(N±) i(HN±H)
14		fHF
