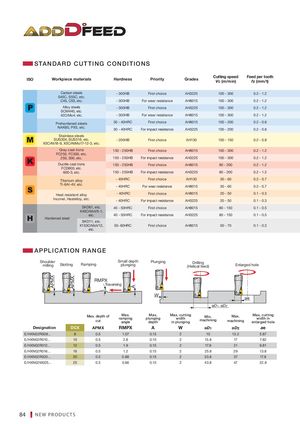

STANDARD CUTTING CONDITIONS

ISO	Workpiece materials	Hardness	Priority	Grades	Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)
	Carbon steels S45C S55C etc	- 300HB	First choice	AH3225	100 - 300	0.2 - 1.2
	, , . C45, C55, etc.	- 300HB	For wear resistance	AH8015	100 - 300	0.2 - 1.2
	Alloy steels SCM440 etc	- 300HB	First choice	AH3225	100 - 300	0.2 - 1.2
	, . 42CrMo4, etc.	- 300HB	For wear resistance	AH8015	100 - 300	0.2 - 1.2
	Prehardened steels	30 - 40HRC	First choice	AH8015	100 - 200	0.2 - 0.8
	NAK80, PX5, etc.	30 - 40HRC	For impact resistance	AH3225	100 - 200	0.2 - 0.8
	Stainless steels SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-3, etc.	- 200HB	First choice	AH130	100 - 150	0.2 - 0.8
	Gray cast irons FC250 FC300 etc	150 - 250HB	First choice	AH8015	100 - 300	0.2 - 1.2
	, , . 250, 300, etc.	150 - 250HB	For impact resistance	AH3225	100 - 300	0.2 - 1.2
	Ductile cast irons FCD600 etc	150 - 250HB	First choice	AH8015	80 - 200	0.2 - 1.2
	, . 600-3, etc.	150 - 250HB	For impact resistance	AH3225	80 - 200	0.2 - 1.2
	Titanium alloy	- 40HRC	First choice	AH130	30 - 60	0.2 - 0.7
	Ti-6Al-4V, etc.	- 40HRC	For wear resistance	AH8015	30 - 60	0.2 - 0.7
	Heat resistant alloy	- 40HRC	First choice	AH8015	20 - 50	0.1 - 0.3
	Inconel, Hastelloy, etc.	- 40HRC	For impact resistance	AH3225	20 - 50	0.1 - 0.3
	SKD61, etc. X40CrMoV5-1	40 - 50HRC	First choice	AH8015	80 - 150	0.1 - 0.5
	Hardened steel , etc.	40 - 50HRC	For impact resistance	AH3225	80 - 150	0.1 - 0.5
	SKD11, etc. X153CrMoV12, etc.	50~60HRC	First choice	AH8015	50 - 70	0.1 - 0.3

APPLICATION RANGE

Shoulder			Small depth	Plunging	Drilling
milling	Slotting	Ramping	plunging			Enlarged hole

(Helical feed) RMPX Traversing W

ae

øD1, øD 2

Max. depth of	Max.	Max.	Max. cutting			Max.	Max. cutting
					Min.
	ramping	plunging		width			width in

cut machining machining

angle depth in plunging enlarged hole

	Designation DCX	APMX	RMPX	A	W	øD		øD		ae
							1		2
E/HXN02R008...	8	0.5	1.07	0.15	2		10	13.2		5.87
E/HXN02R010...	10	0.5	2.8	0.15	2	13.8			17	7.82
E/HXN02R012...	12	0.5	1.9	0.15	2	17.8			21	9.81
E/HXN02R016...	16	0.5	1.2	0.15	2	25.8			29	13.8
E/HXN02R020...	20	0.5	0.88	0.15	2	33.8			37	17.8
E/HXN02M025...	25	0.5	0.66	0.15	2	43.8			47	22.8
