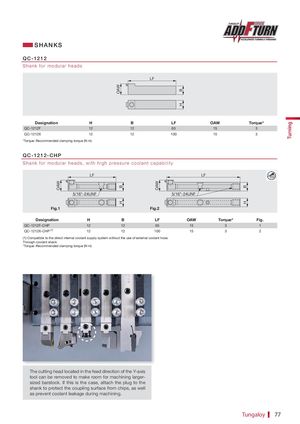

SHANKS
Q C - 1 2 1 2
Shank for modular heads
LF
| Designation | H | B | LF | OAW | Torque* | ||
| QC-1212F | 12 | 12 | 65 | 15 | 3 | ||
| QC-1212X | 12 | 12 | 100 | 15 | 3 |
*Torque: Recommended clamping torque (N∙m)
Q C - 1 2 1 2 - C H P
Shank for modular h e a d s , with high pressure coolant capability
LF LF
5/16"-24UNF 5/16"-24UNF
Fig.1 Fig.2
| Designation | H | B | LF | OAW | Torque* | Fig. | ||
| QC-1212F-CHP | 12 | 12 | 65 | 15 | 3 | 1 | ||
| QC-1212X-CHP (1) | 12 | 12 | 100 | 15 | 3 | 2 |
(1) Compatible to the direct internal coolant supply system without the use of external coolant hose. Through-coolant shank *Torque: Recommended clamping torque (N∙m)
The cutting head located in the feed direction of the Y-axis tool can be removed to make room for machining largersized barstock. If this is the case, attach the plug to the shank to protect the coupling surface from chips, as well as prevent coolant leakage during machining.
