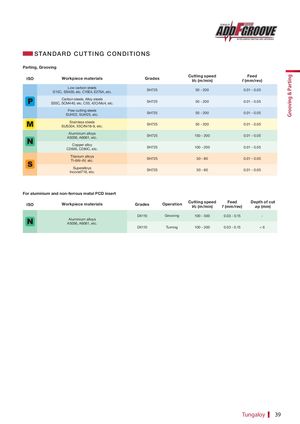

ACCELERATED PARTING AND GROOVING
STANDARD CUTTING CONDITIONS
Parting, Grooving
| ISO | Workpiece materials | Grades | Cutting speed Vc (m/min) | Feed f (mm/rev) |
| Low carbon steels S15C, SS400, etc. C15E4, E275A, etc. | SH725 | 50 - 200 | 0.01 - 0.05 | |
| Carbon steels, Alloy steels S55C, SCM440, etc. C55, 42CrMo4, etc. | SH725 | 50 - 200 | 0.01 - 0.05 | |
| Free cutting steels SUH22, SUH23, etc. | SH725 | 50 - 200 | 0.01 - 0.05 | |
| Stainless steels SUS304, X5CrNi18-9, etc. | SH725 | 50 - 200 | 0.01 - 0.05 | |
| Aluminium alloys A5056, A6061, etc. | SH725 | 150 - 200 | 0.01 - 0.05 | |
| Copper alloy C2600, C280C, etc. | SH725 | 100 - 200 | 0.01 - 0.05 | |
| Titanium alloys Ti-6AI-4V, etc. | SH725 | 30 - 80 | 0.01 - 0.05 | |
| Superalloys Inconel718, etc. | SH725 | 30 - 80 | 0.01 - 0.05 |
For aluminium and non-ferrous metal PCD insert
| ISO | Workpiece materials | Grades | Operation | Cutting speed Vc (m/min) | Feed f (mm/rev) | Depth of cut ap (mm) |
| DX110 | Grooving | 100 - 300 | 0.03 - 0.15 | - | ||
| Aluminium alloys | ||||||
| A5056, A6061, etc. | DX110 | Turning | 100 - 300 | 0.03 - 0.15 | < 6 |
