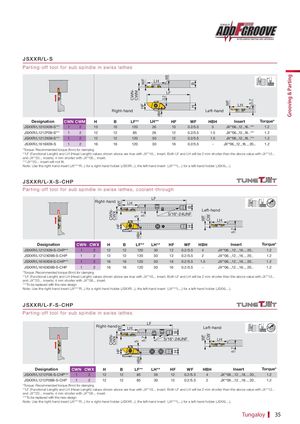

TUNGALOY GROOVE ACCELERATED PARTING AND GROOVING JSXXR/L-S Pa r t i n g - o f f to o l f o r s u b s p i n d l e i n s w i s s l a t h e s Grooving & Parting WB WF LH B CWN- CWM LF 3.2 5.7 WF LH HF H Right-hand 右勝手 Left-hand 左勝手 HBH Designation CWN CWM H B LF** LH** HF WF HBH Insert Torque* JSXXR/L1010X09-S*** 1 2 10 10 120 26 10 0.2/5.5 3 JX**06...,12...,16...*** 1.2 JSXXR/L1212F09-S*** 1 2 12 12 85 26 12 0.2/5.5 1.5 JX**06...,12...,16...*** 1.2 JSXXR/L1212X09-S*** 1 2 12 12 120 30 12 0.2/5.5 1.5 JX**06...,12...,16...*** 1.2 JSXXR/L1616X09-S 1 2 16 16 120 30 16 0.2/5.5 - JX**06...,12...,16..., 20... 1.2 *Torque: Recommended torque (N∙m) for clamping **LF (Functional Length) and LH (Head Length) values shown above are true with JX**16... insert. Both LF and LH will be 2 mm shorter than the above value with JX**12... and JX**20... inserts; 4 mm shorter with JX**06... insert. ***JX**20... insert will not fit. Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...). JSXXR/L-X-S-CHP Pa r t i n g - o f f to o l f o r s u b s p i n d l e i n s w i s s l a t h e s , c o o l a n t - t h ro u g h LF Right-hand WF LH B Left-hand CWN- CWX 5.7 5/16”-24UNF CW WF 5 LH HF H 5.7 HBH Designation CWN CWX H B LF** LH** HF WF HBH Insert Torque* JSXXR/L1212X09-S-CHP*** 1 2 12 12 120 30 12 0.2/5.5 4 JX**06...,12...,16..., 20... 1.2 JSXXR/L1212X09B-S-CHP 1 2 12 12 120 30 12 0.2/5.5 2 JX**06...,12...,16..., 20... 1.2 JSXXR/L1616X09-S-CHP*** 1 2 16 16 120 30 16 0.2/5.5 1.5 JX**06...,12...,16..., 20... 1.2 JSXXR/L1616X09B-S-CHP 1 2 16 16 120 30 16 0.2/5.5 - JX**06...,12...,16..., 20... 1.2 *Torque: Recommended torque (N∙m) for clamping **LF (Functional Length) and LH (Head Length) values shown above are true with JX**16... insert. Both LF and LH will be 2 mm shorter than the above value with JX**12... and JX**20... inserts; 4 mm shorter with JX**06... insert. ***To be replaced with the new design Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...). JSXXR/L-F-S-CHP Pa r t i n g - o f f to o l f o r s u b s p i n d l e i n s w i s s l a t h e s LF Right-hand WF LH Left-hand B CW CWN- WF CWX 5.7 5/16”-24UNF LH 5 5.7 HF H HBH Designation CWN CWX H B LF** LH** HF WF HBH Insert Torque* JSXXR/L1212F09-S-CHP*** 1 2 12 12 85 26 12 0.2/5.5 4 JX**06...,12...,16..., 20... 1.2 JSXXR/L1212F09B-S-CHP 1 2 12 12 85 30 12 0.2/5.5 2 JX**06...,12...,16..., 20... 1.2 *Torque: Recommended torque (N∙m) for clamping **LF (Functional Length) and LH (Head Length) values shown above are true with JX**16... insert. Both LF and LH will be 2 mm shorter than the above value with JX**12... and JX**20... inserts; 4 mm shorter with JX**06... insert. ***To be replaced with the new design Note: Use the right-hand insert (JX****R...) for a right-hand holder (JSXXR...); the left-hand insert (JX****L...) for a left-hand holder (JSXXL...). Tungaloy 35
