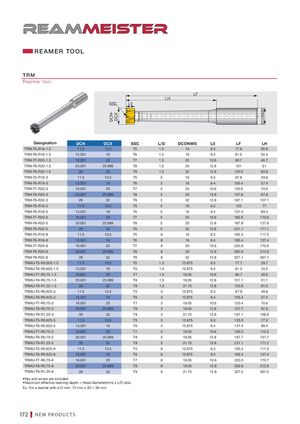

REAMER TOOL
TRM
Reamer tool
| SSC | L5 | LH | LF | S | ||||
| DCN- DCX | DCONM | |||||||
| Designation | DCN | DCX | SSC | L/D | DCONMS | L5 | LF | LH |
| TRM-T5-R16-1.5 | 11.5 | 13.5 | T5 | 1.5 | 16 | 9.3 | 77.8 | 29.8 |
| TRM-T6-R16-1.5 | 13.501 | 16 | T6 | 1.5 | 16 | 9.4 | 81.5 | 33.5 |
| TRM-T7-R20-1.5 | 16.001 | 20 | T7 | 1.5 | 20 | 10.6 | 90.7 | 40.7 |
| TRM-T8-R20-1.5 | 20.001 | 25.999 | T8 | 1.5 | 20 | 12.8 | 101 | 51 |
| TRM-T9-R32-1.5 | 26 | 32 | T9 | 1.5 | 32 | 12.8 | 120.9 | 60.9 |
| TRM-T5-R16-3 | 11.5 | 13.5 | T5 | 3 | 16 | 9.3 | 97.8 | 49.8 |
| TRM-T6-R16-3 | 13.501 | 16 | T6 | 3 | 16 | 9.4 | 105.4 | 57.4 |
| TRM-T7-R20-3 | 16.001 | 20 | T7 | 3 | 20 | 10.6 | 120.6 | 70.6 |
| TRM-T8-R20-3 | 20.001 | 25.999 | T8 | 3 | 20 | 12.8 | 137.8 | 87.8 |
| TRM-T9-R32-3 | 26 | 32 | T9 | 3 | 32 | 12.8 | 167.1 | 107.1 |
| TRM-T5-R16-5 | 11.5 | 13.5 | T5 | 5 | 16 | 9.3 | 125 | 77 |
| TRM-T6-R16-5 | 13.501 | 16 | T6 | 5 | 16 | 9.4 | 137.4 | 89.4 |
| TRM-T7-R20-5 | 16.001 | 20 | T7 | 5 | 20 | 10.6 | 160.6 | 110.6 |
| TRM-T8-R20-5 | 20.001 | 25.999 | T8 | 5 | 20 | 12.8 | 187.8 | 137.8 |
| TRM-T9-R32-5 | 26 | 32 | T9 | 5 | 32 | 12.8 | 231.1 | 171.1 |
| TRM-T5-R16-8 | 11.5 | 13.5 | T5 | 8 | 16 | 9.3 | 165.5 | 117.5 |
| TRM-T6-R16-8 | 13.501 | 16 | T6 | 8 | 16 | 9.4 | 185.4 | 137.4 |
| TRM-T7-R20-8 | 16.001 | 20 | T7 | 8 | 20 | 10.6 | 220.6 | 170.6 |
| TRM-T8-R20-8 | 20.001 | 25.999 | T8 | 8 | 20 | 12.8 | 262.8 | 212.8 |
| TRM-T9-R32-8 | 26 | 32 | T9 | 8 | 32 | 12.8 | 327.1 | 267.1 |
| TRMU-T5-R0.625-1.5 | 11.5 | 13.5 | T5 | 1.5 | 15.875 | 9.3 | 77.7 | 29.7 |
| TRMU-T6-R0.625-1.5 | 13.501 | 16 | T6 | 1.5 | 15.875 | 9.4 | 81.5 | 33.5 |
| TRMU-T7-R0.75-1.5 | 16.001 | 20 | T7 | 1.5 | 19.05 | 10.6 | 90.7 | 40.6 |
| TRMU-T8-R0.75-1.5 | 20.001 | 25.999 | T8 | 1.5 | 19.05 | 12.8 | 101.1 | 51.1 |
| TRMU-T9-R1.25-1.5 | 26 | 32 | T9 | 1.5 | 31.75 | 12.8 | 120.9 | 61.0 |
| TRMU-T5-R0.625-3 | 11.5 | 13.5 | T5 | 3 | 15.875 | 9.3 | 97.8 | 49.8 |
| TRMU-T6-R0.625-3 | 13.501 | 16 | T6 | 3 | 15.875 | 9.4 | 105.4 | 57.4 |
| TRMU-T7-R0.75-3 | 16.001 | 20 | T7 | 3 | 19.05 | 10.6 | 120.4 | 70.6 |
| TRMU-T8-R0.75-3 | 20.001 | 25.999 | T8 | 3 | 19.05 | 12.8 | 137.7 | 87.6 |
| TRMU-T9-R1.25-3 | 26 | 32 | T9 | 3 | 31.75 | 12.8 | 167.1 | 106.9 |
| TRMU-T5-R0.625-5 | 11.5 | 13.5 | T5 | 5 | 15.875 | 9.3 | 125.0 | 77.0 |
| TRMU-T6-R0.625-5 | 13.501 | 16 | T6 | 5 | 15.875 | 9.4 | 137.4 | 89.4 |
| TRMU-T7-R0.75-5 | 16.001 | 20 | T7 | 5 | 19.05 | 10.6 | 160.5 | 110.5 |
| TRMU-T8-R0.75-5 | 20.001 | 25.999 | T8 | 5 | 19.05 | 12.8 | 187.7 | 137.7 |
| TRMU-T9-R1.25-5 | 26 | 32 | T9 | 5 | 31.75 | 12.8 | 231.1 | 171.2 |
| TRMU-T5-R0.625-8 | 11.5 | 13.5 | T5 | 8 | 15.875 | 9.3 | 165.4 | 117.3 |
| TRMU-T6-R0.625-8 | 13.501 | 16 | T6 | 8 | 15.875 | 9.4 | 185.4 | 137.4 |
| TRMU-T7-R0.75-8 | 16.001 | 20 | T7 | 8 | 19.05 | 10.6 | 220.5 | 170.7 |
| TRMU-T8-R0.75-8 TRMU-T9-R1.25-8 | 20.001 26 | 25.999 32 | T8 T9 | 8 8 | 19.05 31.75 | 12.8 12.8 | 262.9 327.2 | 212.9 267.0 |
•Key and screw are included. •Maximum effective reaming depth = Head diameter(mm) x L/D ratio. Ex. For a reamer with ø12 mm: 12 mm x 3D = 36 mm
