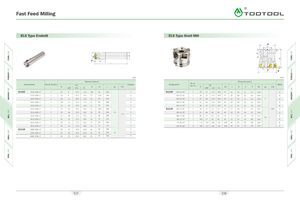

Fast Feed Milling A\
111


ELS Type Endmill ELS Type Shell Mill
D2
d
W
LU

-
•Iff
“ Si|IS!
m
T5

\ X
ap
I \
L1
L \

D1
TO
D

mm mm
Dimension(mm) Dimension(mm)
No.of
Designation No.of Inserts D1 Adapter Designation D1 Arbor
Inserts
D d LI L ap A.R. D D2 d H E T W ap A.R.
GM LD FL GM LD FL
ELS10 R 2525 -150L- 2T 2 25 8 12.5 11.5 125 60 150 S ELS10 R 050- 22 - 04T 4 50 33 37.5 36.5 47 22 50 21 6.3 10.4 A
2525 - 200L- 2T 2 25 8 12.5 11.5 25 120 200 S 050- 22 - 05 T 5 50 33 37.5 36.5 47 22 50 21 6.3 10.4 A
2825 -150L- 2T 2 28 11 15.5 14.5 25 40 150 S 063 - 22 - 05 T 5 63 46 50.5 49.5 60 22 50 21 6.3 10.4 1.5 A
2825 - 200L- 2T 2 28 11 15.5 14.5 25 40 200 S 063 - 22 - 06T 6 63 46 50.5 49.5 60 22 50 21 6.3 10.4 A
3232 -150L- 3T 3 32 15 19.5 18.5 32 70 150 S 080- 27- 07T 7 80 63 67.5 66.5 76 27 63 24 7.0 12.4 B
3232 - 200L- 3T 3 32 15 19.5 18.5 32 120 200 S ELS14 R 050- 22 - 04T 4 50 27 33 32 47 22 50 21 6.3 10.4 + 10° A
3532 -150L- 3T 3 35 18 22.5 21.5 32 50 150 1.5 S 063 - 22- 05 T 5 63 40 46 45 60 22 50 24 6.3 10.4 A
-10°
3532 - 200L- 3T 3 35 18 22.5 21.5 32 50 200 S 080- 27- 06T 6 80 57 63 62 76 27 63 24 7.0 12.4 B
2.0
4032 -150L-4T 4 40 23 27.5 26.5 32 50 150 S 100- 32 - 07T 7 100 77 83 82 96 32 63 28 8.0 14.4 B
4032 - 200L-4T 4 40 23 27.5 26.5 32 50 200 S 125 -40- 07T 7 125 102 108 107 100 40 63 33 9.0 16.4 B
4032 - 250L-4T 4 40 23 27.5 26.5 32 50 250 S 160-40- 08T 8 160 137 143 142 100 40 63 32 9.0 16.4 C
ELS14 R 5042 -150L- 3T 3 50 27 33.0 32.0 42 50 150 S
6342 -150L-4T 4 63 40 46.0 45.0 42 50 150 2.0 S
8042 -150L- 5T 5 80 57 63.0 62.0 42 50 150 S


537 538
