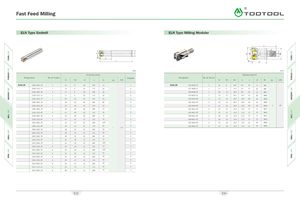

Fast Feed Milling A\
0


ELN Type Endmill ELN Type Milling Modular

L


5
ej T3
Q 5 ^ g
ap
L1
L ap
L1


mm
Dimension(mm) Dimension(mm)
Designation No.of Inserts Adapter Designation No.of Inserts
D D1 d L LI ap A.R. D D1 D2 d L LI M ap
ELN11R 1616 -100L - 2 T 2 16 8 16 100 30 S ELN11R 016 - M08 - 2T 2 16 8 14.7 8.5 43 25 M8
1616-150L - 2 T 2 16 8 16 150 50 S 017-M08- 2T 2 17 9 14.7 8.5 43 25 M8
1716-100L - 2 T 2 17 9 16 100 20 S 018 - M08- 2T 2 18 10 14.7 8.5 43 25 M8
1716-150L -2 T 2 17 9 16 150 50 S 020-M10- 3T 3 20 12 18.7 10.5 49 30 M10
2020-150L - 3 T 3 20 12 20 150 70 S 020- M10- 4T 4 20 12 18.7 10.5 49 30 M10
2020 - 200L - 3T 3 20 12 20 200 80 S 022-M10- 3T 3 22 14 18.7 10.5 49 30 M10
2220-150L - 3T 3 22 14 20 150 50 S 022-M10-4T 4 22 14 18.7 10.5 49 30 M10 1
2220 - 200L - 3T 3 22 14 20 200 50 S 025 - M12-4T 4 25 17 23.0 12.5 57 35 M 12
2220-150L - 4T 4 22 14 20 150 50 S 025 - M12- 5T 5 25 17 23.0 12.5 57 35 M12
2220 - 200L -4T 4 22 14 20 200 50 S 028- M12-4T 4 28 20 23.0 12.5 57 35 M 12
2525 -150L -4T 4 25 17 25 150 70 S 028- M12- 5T 5 28 20 23.0 12.5 57 35 M 12
2525 - 200L -4T 4 25 17 25 200 120 S 032-M16- 5T 5 32 24 30.0 17.0 63 40 M16
2825 -150L -4T 4 28 20 25 150 50 S 032- M16- 6T 6 32 24 30.0 17.0 63 40 M16
1 -10°
2825 - 200L -4T 4 28 20 25 200 50 S
2825 -150L - 5 T 5 28 20 25 150 50 S
2825 - 200L - 5 T 5 28 20 25 200 50 S
3232-150L - 5 T 5 32 24 32 150 70 S
3232- 200L - 5T 5 32 24 32 200 120 S
3232-150L - 6T 6 32 24 32 150 70 S
3232- 200L - 6T 6 32 24 32 200 120 S
3332-150L - 6T 6 33 25 32 150 50 S
3332 - 200L - 6T 6 33 25 32 200 50 S
3532-150L - 6T 6 35 27 32 150 50 S
3532- 200L - 6T 6 35 27 32 200 50 S
4032-150L - 6T 6 40 30 32 150 50 S
4032- 200L - 6T 6 40 30 32 200 50 S
