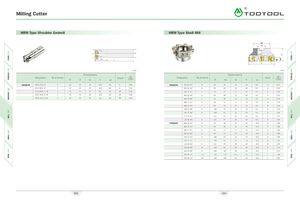

Milling Cutter A\
4'


HRM Type Shoulder Endmill HRM Type Shell Mill
D2
d


3 T3
'
EZ
3d
X

L1
L '
O
90 ° %
D

mm
Dimension(mm) Dimension(mm)
Designation No.of Inserts Adapter Designation No.of Inserts Arbor
D d LI L ap D D2 d H ap
HRM03 R 2525 -170 L - 2 T 2 25 25 34 170 9.0 S 0.58 HRM 03 R 040-16- 04T 4 40 35 16 40 9.0 A 0.23
3232-195 L- 3T 3 32 32 34 195 9.0 S 1.05 050- 22 - 04T 4 50 42 22 40 9.0 A 0.35
2525 - 099L - 2 T- W 2 25 25 42 99 9.0 W 0.30 050- 22 - 05 T 5 50 42 22 40 9.0 A 0.36
3232-103L- 3T-W 3 32 32 42 103 9.0 W 0.50 063 - 22- 04T 4 63 49 22 40 9.0 A 0.55
4032 -111L - 4T- W 4 40 32 50 111 9.0 W 0.62 063 - 22 - 06T 6 63 49 22 40 9.0 A 0.50
080- 27 -05 T 5 80 57 27 50 9.0 B 1.18
080- 27- 07T 7 80 57 27 50 9.0 B 1.02
100- 32-06T 6 100 67 32 50 9.0 B 1.78
100- 32 - 08T 8 100 67 32 50 9.0 B 2.01
125 -40- 07T 7 125 87 40 63 9.0 B 3.44
125 -40- 09T 9 125 87 40 63 9.0 B 3.38
HRM 04R 063 - 22- 04T 4 63 49 22 40 13.0 A 0.46
063 - 22 - 05 T 5 63 49 22 40 13.0 A 0.46
080- 27- 04T 4 80 57 27 50 13.0 B 0.98
080- 27- 06T 6 80 57 27 50 13.0 B 0.89
100- 32-05 T 5 100 67 32 50 13.0 B 0.98
100- 32 - 07T 7 100 67 32 50 13.0 B 1.84
125 -40- 06T 6 125 87 40 63 13.0 B 3.44
125 -40- 08T 8 125 87 40 63 13.0 B 3.33
160-40- 08T 8 160 107 40 63 13.0 C 6.19
200- 60-10T 10 200 130 60 63 13.0 C 7.00
250- 60-12 T 12 250 180 60 63 13.0 C 9.36
