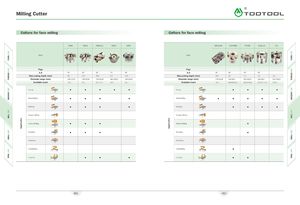

Cutters for face milling Cutters for face milling
| FIRM | FM01 | FM01.11 | FM02 | MFA | ||
| Type | ||||||
| Page | ||||||
| A.A | 90° | 90° | 90° | 75° | 90° | |
| Max.cutting depth | (mm) | 9.0 | 15.5 | 39.0 | 6.0 | 14.0 |
| Diameter range ( | mm) | 40-D250 | 40-0250 | 50-D100 | 80-D100 | 40-D200 |
| Available inse | rt | LN.U... | AP.T... | AP.T11T3.. | ART... | LN.T... |
| Facing | -T | |||||
| Shouldering | ||||||
| Slotting | ||||||
| Plungemilling E | ||||||
| .2 IS HelicalMilling a | ||||||
| Ramping | ||||||
| Pocketing | ||||||
| Chamfering | ||||||
| Copying |
| Type | MFA13N | ASPV06R 9 t) | TFXND | ELN11R | ELS |
| Page | |||||
| A.A | 90° | 90° | 90° | 90° | |
| Max.cutting depth (mm) | 70.0 | 3.0 | 7.5 | 1.0 | 2.0 |
| Diameter range (mm) | 50-D100 | 40-D63 | 50-D250 | 40-D63 | 50-D160 |
| Available insert | LN.U... | MPHW0603.. | WN.X0806.. | EN.U11T310 | XOMT... |
| Facing | |||||
| Shouldering | |||||
| Slotting | |||||
| Plungemilling C | |||||
| .2 HelicalMilling CL | |||||
| Ramping | |||||
| Pocketing | |||||
| Chamfering | |||||
| Copying |
