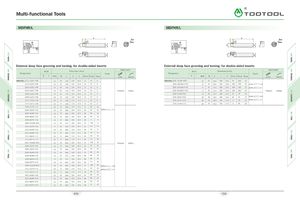

Каталог TooTool техническая информация 2 - страница 47

Multi- functional Tools A\
MDFHR /L MDFHR/L
jl ii
12

h h
r 3sS h


fj fiSF K f
*
13® b


External deep face grooving and turning, for double -sided inserts External deep face grooving and turning , for double - sided inserts
Spare parts Spare parts
Stock Dimension ( mm ) Stock Dimension ( mm )
Designation Insert Designation Insert
R L H=h W l L S Dmin Dmax Tmax screw Wrench R L H=h W i L S Dmin Dmax Tmax screw Wrench
MDFHR / L 1212-12/16-3T06 12 12 19.0 120 11.0 12 16 6 MDFHR / L 2525-75/100-4T25 25 25 44.0 150 25.6 75 100 25
1212 -16/25- 3T06 12 12 19.0 120 11.0 16 25 6 2525-100/140 -4T25 25 25 44.0 150 25.6 100 140 25 DCPR/ L4 nnn -GM
1616 -12/16 - 3T06 16 16 19.0 120 15.0 12 16 6 2525-140/240 -4T25 25 25 44.0 150 25.6 140 240 25 DCPR/ L4 DDD -GH
1616-16/25-3T06 16 16 19.0 120 15.0 16 25 6 PTX0514 HW40 L 2525- 240/800-4T25 25 25 44.0 150 25.6 240 800 25 PTX 0616 HW 50 L
2020-12/16- 3T06 20 20 19.0 120 20.0 12 16 6 2020- 25/ 30- 5T10 20 20 38.0 140 21.0 25 30 10
2020-16/25-3T06 20 120 20.0 16 25 6 2020- 28/31- 5T15 20 140 21.0 28 31 15 DCPR/ LSEHHD -GM
20 19.0 20 34.0
2525-12/16-3T06 25 25 19.0 120 25.0 12 16 6 2020- 31/ 35- 5T15 20 20 34.0 140 21.0 31 35 15 DCPR/ L5 DDD -GH
2525-16/25-3T06 25 25 19.0 120 25.0 16 25 6 2020- 35/40- 5T20 20 20 39.0 140 21.0 35 40 20
2020-25/30-3T12 20 20 38.0 140 20.5 25 30 12
2020-30/38 - 3T12 20 20 38.0 140 20.5 30 38 12 DCPR/L3 DDD -GH
2020- 38/48 - 3T12 20 20 38.0 140 20.5 38 48 12
2020-48/60-3T12 20 20 38.0 140 20.5 48 60 12
2020-60/75-3T22 20 20 40.0 140 20.5 60 75 22
2020-75/100- 3T25 20 20 43.0 140 20.5 75 100 25
2525-25/ 30-3T12 25 25 38.0 150 25.5 25 30 12
2525-30/38-3T12 25 25 38.0 150 25.5 30 38 12
2525-38/48-3T12 25 25 38.0 150 25.5 38 48 12
2525-48/60 - 3T22 25 25 40.0 150 25.5 48 60 22
2525-60/75- 3T22 25 25 40.0 150 25.5 60 75 22
2525-75/100- 3T25 25 25 43.0 150 25.5 75 100 25
PTX0616 HW50 L
2020-25/29-4T12 20 20 39.0 140 20.6 25 29 12
2020-29/34-4T12 20 20 39.0 140 20.6 29 34 12
2020-34/40 -4T 20 20 20 39.0 140 20.6 34 40 20
2020 -40/48-4T25 20 20 44.0 140 20.6 40 48 25
2020-48/60 -4T25 20 20 44.0 140 20.6 48 60 25
2020-60/75-4T25 20 20 44.0 140 20.6 60 75 25
2020-75/100-4T25 20 20 44.0 140 20.6 75 100 25
DCPR/ L4 DDD -GM
2525-25/29-4T12 25 25 39.0 150 25.6 25 29 12
DCPR/ L4 DDD -GH
2525-29/34-4T12 25 25 39.0 150 25.6 29 34 12
2525-34/40 -4T20 25 25 39.0 150 25.6 34 40 20
2525-40/48 -4T 25 25 25 44.0 150 25.6 40 48 25
2525-48/60-4T25 25 25 44.0 150 25.6 48 60 25
2525-60/75-4T25 25 25 44.0 150 25.6 60 75 25
