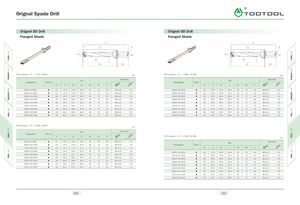

Orignal Spade Drill A\
Orignal SD Drill Orignal SD Drill
Flanged Shank Flanged Shank
L L
L2 C L2 C
f

1 I /
1 I f


L3 L4 L3 L4

30 Connector ( D = <j> 35.1- <|> 47.9) mm 40 Connector ( D = <j> 48.0- <]> 65.28 ) mm
Spare Parts Spare Parts
Size Size
Designation Stock Designation Stock
LI 12 L3 LI D1 L4 G LI 12 L3 L D1 L4 G
SD30S -76- XP40 76 125.0 129.8 195.0 40 70 1/4 M 5.0x10 T - 20 SD40S -130 - XP40 130 179.4 184.2 249.4 40 70 1/4 M 5.0X15 T - 20
SD30S -121- XP40 121 173.0 177.8 243.0 40 70 1/4 M 5.0x10 T - 20 SD40H -232- XP40 232 281.0 285.8 351.0 40 70 1/4 M 5.0X15 T- 20
SD30H-165 - XP40 165 217.5 222.3 287.5 40 70 1/4 M 5.0x10 T -20 SD40S - 350- XP40 350 399.2 404.0 469.2 40 70 1/4 M 5.0X15 T- 20
SD30H - 210- XP40 210 261.9 266.7 331.9 40 70 1/4 M 5.0x10 T - 20 SD40H - 350- XP40 350 399.2 404.0 469.2 40 70 1/4 M 5.0X15 T- 20
SD30H - 260- XP40 260 312.3 317.1 382.3 40 70 1/4 M 5.0x10 T -20 SD40S - 422 - XP40 422 471.5 476.3 541.5 40 70 1/4 M 5.0X15 T- 20
SD30S - 349 - XP40 349 401.6 406.4 471.6 40 70 1/4 M 5.0x10 T -20 SD40H -422- XP40 422 471.5 476.3 541.5 40 70 1/4 M 5.0X15 T- 20
SD30H - 349 - XP40 349 401.6 406.4 471.6 40 70 1/4 M 5.0x10 T -20 SD40S - 525 - XP40 525 574.2 579.0 644.2 40 70 1/4 M 5.0X15 T- 20
SD30S - 559 - XP40 559 611.1 615.9 681.1 40 70 1/4 M 5.0X10 T - 20 SD40S - 625 - XP40 625 674.7 679.5 744.7 40 70 1/4 M 5.0X15 T- 20
SD30S -787- XP40 787 839.7 844.5 909.7 40 70 1/4 M 5.0x10 T -20 SD40S - 879- XP40 879 928.7 933.5 998.7 40 70 1/4 M 5.0X15 T - 20


35 Connector ( D = (j> 42.0 - 4> 47.9 )
mm
Spare Parts
Size
Designation Stock
LI 12 L3 LI D1 L4 G 45 Connector ( D = <j> 56.0- <j> 65.28 )
mm
SD35 S -76- XP40 76 125.0 129.8 195.0 40 70 1/4 M 5.0x10 T-20 Spare Parts
Size
SD35 S -121- XP40 121 173.0 177.8 243.0 40 70 1/4 M 5.0x10 T - 20 Designation Stock
SD35H -165 - XP40 165 217.5 222.3 287.5 40 70 1/4 M 5.0x10 T - 20 LI 12 L3 L D1 L4 G
SD35H- 210- XP40 210 261.9 266.7 331.9 40 70 1/4 M 5.0x10 T - 20
SD45 S -130 - XP40 130 179.4 184.2 249.4 40 70 1/4 M 5.0X15 T- 20
SD35H- 260- XP40 260 312.3 317.1 382.3 40 70 1/4 M 5.0x10 T -20
SD45 H - 232- XP40 232 281.0 285.8 351.0 40 70 1/4 M 5.0X15 T- 20
SD35 S - 349 - XP40 349 401.6 406.4 471.6 40 70 1/4 M 5.0x10 T -20
SD45 S - 350 - XP40 350 399.2 404.0 469.2 40 70 1/4 M 5.0X15 T- 20
SD35H - 349 - XP40 349 401.6 406.4 471.6 40 70 1/4 M 5.0x10 T -20
SD45 H - 350- XP40 350 399.2 404.0 469.2 40 70 1/4 M 5.0X15 T- 20
SD35 S - 559 - XP40 559 611.1 615.9 681.1 40 70 1/4 M 5.0x10 T - 20
SD45 H -422- XP40 422 471.5 476.3 541.5 40 70 1/4 M 5.0X15 T- 20
SD35 S -787- XP40 787 839.7 844.5 909.7 40 70 1/4 M 5.0x10 T-20
SD45 S - 422 - XP40 422 471.5 476.3 541.5 40 70 1/4 M 5.0X15 T- 20
SD45 S - 525 - XP40 525 574.2 579.0 644.2 40 70 1/4 M 5.0X15 T- 20
SD45 S - 625 - XP40 625 674.7 679.5 744.7 40 70 1/4 M 5.0X15 T- 20
SD45 S -879 - XP40 879 928.7 933.5 998.7 40 70 1/4 M 5.0X15 T- 20


693 694
