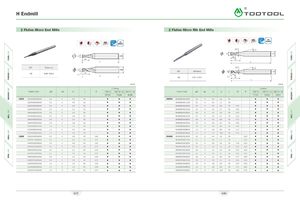

2 Flutes Micro End Mills 2 Flutes Micro Rib End Mills
| • a | u/c P H U/C | > | L | I | dh( » | |||||
| 0D | Tolerance | Di | dh( » | |||||||
| All | 0.00-0.015 | a r | p H | L | Coating | (mm) | ||||
| OrderCode | cpd | LI | L2 | L | UC | R | -HRC52 | HRC50-6 | 2 HRC52-68 | |
| TT550 | TS600 | N400 | ||||||||
| 2RMFE 00204000N010050 | 0.2 | 4 | 0.4 | 1.0 | 50 | |||||
| 00304000N015050 | 0.3 | 4 | 0.6 | 1.5 | 50 | |||||
| 00404000N020050 | 0.4 | 4 | 0.8 | 2.0 | 50 | 0.37 | ||||
| 00504000N025050 | 0.5 | 4 | 1.0 | 2.5 | 50 | 0.45 | ||||
| 00604000N030050 | 0.6 | 4 | 1.2 | 3.0 | 50 | 0.55 | ||||
| 00704000N035050 | 0.7 | 4 | 1.4 | 3.5 | 50 | 0.65 | ||||
| 00804000N040050 | 0.8 | 4 | 1.6 | 4.0 | 50 | 0.75 | ||||
| 00904000N045050 | 0.9 | 4 | 1.8 | 4.5 | 50 | 0.85 | ||||
| 01004000N060050 | 1.0 | 4 | 1.8 | 6.0 | 50 | 0.97 | ||||
| 01204000N080050 | 1.2 | 4 | 1.8 | 8.0 | 50 | 1.17 | ||||
| 01504000N100050 | 1.5 | 4 | 2.3 | 10.0 | 50 | 1.45 | ||||
| 2RMBE 00204010N010050 | 0.2 | 4 | 0.4 | 1.0 | 50 | 0.10 | ||||
| 00304015N015050 | 0.3 | 4 | 0.6 | 1.5 | 50 | 0.15 | ||||
| 00404020N020050 | 0.4 | 4 | 0.8 | 2.0 | 50 | 0.36 | 0.20 | |||
| 00504025N025050 | 0.5 | 4 | 1.0 | 2.5 | 50 | 0.45 | 0.25 | |||
| 00604030N030050 | 0.6 | 4 | 1.2 | 3.0 | 50 | 0.55 | 0.30 | |||
| 00704035N035050 | 0.7 | 4 | 1.4 | 3.5 | 50 | 0.65 | 0.35 | |||
| 00804040N040050 | 0.8 | 4 | 1.6 | 4.0 | 50 | 0.75 | 0.40 | |||
| 00904045N045050 | 0.9 | 4 | 1.8 | 4.5 | 50 | 0.85 | 0.45 | |||
| 01004050N060050 | 1.0 | 4 | 1.8 | 6.0 | 50 | 0.97 | 0.50 | |||
| 01204060N080050 | 1.2 | 4 | 1.8 | 8.0 | 50 | 1.17 | 0.60 | |||
| 01504075N100050 | 1.5 | 4 | 2.3 | 10.0 | 50 | 1.45 | 0.75 |
| dh6 | ||||||||
| ap | L | |||||||
| 0D All | Tolerance 0.00-0.012 | ap | L | C | dh6 oating | (mm) | ||
| OrderCode | cpD | cpd | LI | L | R | -HRC52 | HRC50-62 | HRC52-68 |
| TT550 | TS600 | N400 | ||||||
| 2MFE 00204000V004050 | 0.2 | 4 | 0.4 | 50 | ||||
| 00304000V006050 | 0.3 | 4 | 0.6 | 50 | ||||
| 00404000V008050 | 0.4 | 4 | 0.8 | 50 | ||||
| 00504000V010050 | 0.5 | 4 | 1.0 | 50 | ||||
| 00604000V012050 | 0.6 | 4 | 1.2 | 50 | ||||
| 00704000V014050 | 0.7 | 4 | 1.4 | 50 | ||||
| 00804000V016050 | 0.8 | 4 | 1.6 | 50 | ||||
| 00904000V018050 | 0.9 | 4 | 1.8 | 50 | ||||
| 01004000V025050 | 1.0 | 4 | 2.5 | 50 | ||||
| 01204000V040050 | 1.2 | 4 | 4.0 | 50 | ||||
| 01504000V040050 | 1.5 | 4 | 4.0 | 50 | ||||
| 2MBE 00204010V004050 | 0.2 | 4 | 0.4 | 50 | 0.10 | |||
| 00304015V006050 | 0.3 | 4 | 0.6 | 50 | 0.15 | |||
| 00404020V008050 | 0.4 | 4 | 0.8 | 50 | 0.20 | |||
| 00504025V010050 | 0.5 | 4 | 1.0 | 50 | 0.25 | |||
| 00604030V012050 | 0.6 | 4 | 1.2 | 50 | 0.30 | |||
| 00704035V014050 | 0.7 | 4 | 1.4 | 50 | 0.35 | |||
| 00804040V016050 | 0.8 | 4 | 1.6 | 50 | 0.40 | |||
| 00904045V018050 | 0.9 | 4 | 1.8 | 50 | 0.45 | |||
| 01004050V025050 | 1.0 | 4 | 2.5 | 50 | 0.50 | |||
| 01204060V030050 | 1.2 | 4 | 3.0 | 50 | 0.60 | |||
| 01504075V040050 | 1.5 | 4 | 4.0 | 50 | 0.75 |
