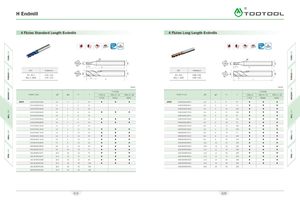

4 Flutes Standard Length Endmills 4 Flutes Long Length Endmills
1 % ae 0
h6 shank
! JT T
| T3 | o | o | ||||
| Q | 17 | 51 | C3 | |||
| 1 | L1 | |||||
| L | L |
0D Tolerance i 0D Tolerance
| O | Q | c | ||||||
| 01-012 | - | 5) | 01-012 | - | S> | s | ||
| 0.00 | 0.02 | 0.00 | 0.02 | |||||
| 012.1-020 | 0.00-0.03 | 012.1-020 | 0.00-0.03 |
L1 L L
(mm) (mm)
| Coating | |||||||
| OrderCode | (pD | cpd | LI | L | -HRC52 | HRC50-62 | HRC52-68 |
| TT550 | TS600 | N400 | |||||
| 4NFE 01004000V03050 | 1.0 | 4 | 3 | 50 | |||
| 01504000V04050 | 1.5 | 4 | 4 | 50 | |||
| 02002000V06050 | 2.0 | 2 | 6 | 50 | |||
| 02004000V06050 | 2.0 | 4 | 6 | 50 | |||
| 02504000V08050 | 2.5 | 4 | 8 | 50 | |||
| 03003000V08050 | 3.0 | 3 | 8 | 50 | |||
| 03004000V08050 | 3.0 | 4 | 8 | 50 | |||
| 03504000V11050 | 3.5 | 4 | 11 | 50 | |||
| 04004000V11050 | 4.0 | 4 | 11 | 50 | |||
| 05005000V13050 | 5.0 | 5 | 13 | 50 | |||
| 05006000V13050 | 5.0 | 6 | 13 | 50 | |||
| 06006000V15050 | 6.0 | 6 | 15 | 50 | |||
| 07008000V20060 | 7.0 | 8 | 20 | 60 | |||
| 08008000V20060 | 8.0 | 8 | 20 | 60 | |||
| 09010000V25075 | 9.0 | 10 | 25 | 75 | |||
| 10010000V25075 | 10.0 | 10 | 25 | 75 | |||
| 12012000V30075 | 12.0 | 12 | 30 | 75 | |||
| 14014000V35080 | 14.0 | 14 | 35 | 80 | |||
| 16016000V45100 | 16.0 | 16 | 45 | 100 | |||
| 18018000V45100 | 18.0 | 18 | 45 | 100 | |||
| 20020000V45100 | 20.0 | 20 | 45 | 100 |
| Coating | |||||||
| OrderCode | cpD | LI | L | -HRC52 | HRC50-62 | HRC52-68 | |
| TT550 | TS600 | N400 | |||||
| 4NFE 03003000V09075 | 3.0 | 3 | 9 | 75 | |||
| 03004000V09075 | 3.0 | 4 | 9 | 75 | |||
| 03003000V12100 | 3.0 | 3 | 12 | 100 | |||
| 03004000V12100 | 3.0 | 4 | 12 | 100 | |||
| 04004000V12075 | 4.0 | 4 | 12 | 75 | |||
| 04004000V16100 | 4.0 | 4 | 16 | 100 | |||
| 06006000V18075 | 6.0 | 6 | 18 | 75 | |||
| 06006000V24100 | 6.0 | 6 | 24 | 100 | |||
| 06006000V30150 | 6.0 | 6 | 30 | 150 | |||
| 08008000V24075 | 8.0 | 8 | 24 | 75 | |||
| 08008000V32100 | 8.0 | 8 | 32 | 100 | |||
| 08008000V40150 | 8.0 | 8 | 40 | 150 | |||
| 10010000V40100 | 10.0 | 10 | 40 | 100 | |||
| 10010000V50150 | 10.0 | 10 | 50 | 150 | |||
| 12012000V45100 | 12.0 | 12 | 45 | 100 | |||
| 12012000V60150 | 12.0 | 12 | 60 | 150 | |||
| 14014000V45100 | 14.0 | 14 | 45 | 100 | |||
| 14014000V60150 | 14.0 | 14 | 60 | 150 | |||
| 16016000V60150 | 16.0 | 16 | 60 | 150 | |||
| 20020000V60150 | 20.0 | 20 | 60 | 150 |
