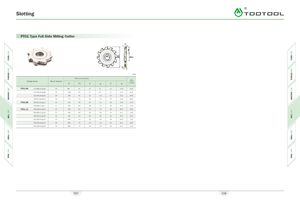

Slotting A\

PT01 Type Full Side Milling Cutter
H
<u


1 0 D2


mm
Dimension ( mm )
Designation No.of Inserts
D D2 d ap H ae
PT01.06 J 27.080.10.ap08 10 80 41 27 8 12 17.6 0.20
J 32.100.14.ap08 14 100 47 32 8 12 25.1 0.30
J 32.100.14.apl0 14 100 47 32 10 14 25.1 0.40
J 40.125.16.apl0 16 125 55 40 10 14 33.6 0.60
PT01.08 J 40.125.12.apl 2 12 125 55 40 12 16 32.6 0.70
J 40.160.12.apl 2 12 160 62 40 12 16 31.5 1.30
PT01.12 J 40.160.12.apl 6 12 160 62 40 16 20 47.6 1.60
J 40.160.12.apl8 12 160 62 40 18 24 47.3 1.90
J 40.160.12.ap 20 12 160 62 40 20 26 47.3 2.10
J 50.200.14.apl6 14 200 72 50 16 20 62.6 2.50
J 50.200.14.apl8 14 200 72 50 18 24 62.3 2.90
J 50.200.14.ap 20 14 200 72 50 20 26 62.3 3.30
