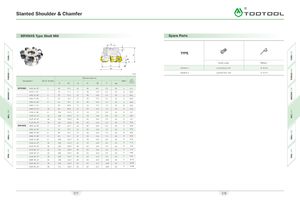

Slanted Shoulder & Chamfer A\
0


MFHN45 Type Shell Mill Spare Parts
d
H

i
TYPE
m 45 °
x
Insert screw Wrench
D %
D1 MFHN 45 - 6 L0755SSTX 3.0-4.0 P FF - TPF08
MFHN 45 - 8 L1255SSTX4.5 - 6.4 P FF -TPF20
mm
Dimension(mm)
Designation No.of Inserts Arbor
D D1 d H W T ap
MFHN45 6040-16- 05 T 5 40 47.3 16 40 8.4 5.6 3.0 A 0.37
6050- 22 - 04T 4 50 57.3 22 40 10.4 6.3 3.0 A 0.62
6050- 22 - 06T 6 50 57.3 22 40 10.4 6.3 3.0 A 0.41
6063- 22 - 06T 6 63 70.3 22 40 10.4 6.3 3.0 A 0.56
6063- 22 - 08 T 8 63 70.3 22 40 10.4 6.3 3.0 A 0.69
6080- 27-07T 7 80 86.8 27 50 12.4 7.0 3.0 B 1.10
6080- 27-10T 10 80 86.8 27 50 12.4 7.0 3.0 B 1.19
6100-32 - 08 T 8 100 107.1 32 50 14.4 8.0 3.0 B 2.07
6100- 32 - 12 T 12 100 107.1 32 50 14.4 8.0 3.0 B 1.82
6125-40-10T 10 125 132.2 40 63 16.4 9.0 3.0 B 3.62
6125-40-16T 16 125 132.2 40 63 16.4 9.0 3.0 B 3.62
MFHN45 8050- 22 - 04T 4 50 61.7 22 40 10.4 6.3 5.0 A 0.38
8063- 22 - 06T 6 63 74.7 22 40 10.4 6.3 5.0 A 0.54
8080- 27 - 06T 6 80 91.7 27 50 12.4 7.0 5.0 B 1.06
8080- 27- 08 T 8 80 91.7 27 50 12.4 7.0 5.0 B 1.06
8100-32 - 08 T 8 100 111.7 32 50 14.4 8.0 5.0 B 1.76
8100-32 -10T 10 100 111.7 32 50 14.4 8.0 5.0 B 1.76
8125-40-10T 10 125 136.7 40 63 16.4 9.0 5.0 B 3.36
8125 -40-12T 12 125 136.7 40 63 16.4 9.0 5.0 B 3.36
8160-40-12T 12 160 171.7 40 63 16.4 9.0 5.0 C 6.46
8160- 40- 14T 14 160 171.7 40 63 16.4 9.0 5.0 C 6.45
8200- 60- 12T 12 200 211.7 60 63 25.7 14.0 5.0 C 11.37
8250- 60- 14T 14 250 261.7 60 63 25.7 14.0 5.0 C 18.50
8315 - 60- 16T 16 315 326.7 60 63 25.7 14.0 5.0 C 37.00
