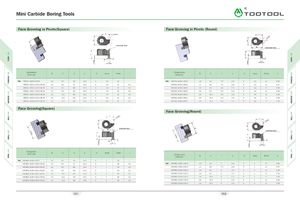

Mini Carbide Boring Tools A\
Face Grooving in Pivots(Square) Face Grooving in Pivots (Round)
f
D min.

o

toolholder face
toolholder face

</)
1/1


Designation Designation
b S f a d tmax Dmin r b S f a d tmax Dmin r
(Internal) (Internal)

MB 09FER/L- B100-1.5 D12 1.0 8.3 7.0 11.5 9 1.5 12 MB 09FER/L - R100-1.5D12 1.0 8.3 7.0 11.5 9 1.5 12 0.50
09FER/L- B150- 2.5 D12 - R0.20 1.5 8.3 7.5 12.0 9 2.5 12 0.2 09FER/L- R150- 2.0D12 1.5 8.3 7.5 12.0 9 2.5 12 0.75
09FER/L- B 200- 3.0D12 - R0.20 2.0 8.3 8.0 12.5 9 3.0 12 0.2 09FER/L - R 200- 3.0D12 2.0 8.3 8.0 12.5 9 3.0 12 1.00
09FER/L- B300- 3.0D12- R0.20 3.0 8.3 9.0 13.5 9 3.0 12 0.2 09FER/L - R300- 3.0D12 3.0 8.3 9.0 13.5 9 3.0 12 1.50
09FER/L- B 200- 5.0D12 - R0.20 2.0 10.3 8.0 12.5 9 5.0 12 0.2 09FER/L - R 200- 5.0D12 2.0 10.3 8.0 12.5 9 5.0 12 1.00
09FER/L- B300- 5.0D12- R0.20 3.0 10.3 9.0 13.5 9 5.0 12 0.2 09FER/L - R300- 5.0D12 3.0 10.3 9.0 13.5 9 5.0 12 1.50
09FER/L- B300- 6.0D12 - R0.20 3.0 11.3 9.0 13.5 9 6.0 12 0.2 09FER/L- R300- 6.0D12 3.0 11.3 9.0 13.5 9 6.0 12 1.50

Face Grooving(Square)
Face Grooving(Round)

toolholder face
foolholder face


Designation
b S f a d tmax Dmin r
(Internal) Designation
b S f a d tmax Dmin r
(Internal)
MB 09FNR/ L - B100- 3.0D14 1.0 8.2 7.0 11.5 9 3 14
09FNR/ L - B150- 3.0D14- R0.20 1.5 8.2 7.5 12.0 9 3 14 0.2 MB 09FNR/L - R100- 3.0D14 1.0 8.3 7 11.5 9 3 14 0.50
09FNR/ L - B 200- 3.0D14- R0.20 2.0 8.2 8.0 12.5 9 3 14 0.2 09FNR/L- R150- 3.0D14 1.5 8.3 7.5 12.0 9 3 14 0.75
09FNR/ L - B300- 3.0D14- R0.20 3.0 8.2 9.0 13.5 9 3 14 0.2 09FNR/L - R 200- 3.0D14 2.0 8.3 8 12.5 9 3 14 1.00
09FNR/L - B 200- 5.0D14- R0.20 2.0 10.2 8.0 12.5 9 5 14 0.2 09FNR/L-R 300- 3.0D14 3.0 8.3 9 13.5 9 3 14 1.50
09FNR/ L - B300- 5.0D14- R0.20 3.0 10.2 9.0 13.5 9 5 14 0.2 09FNR/L - R 200- 5.0D14 2.0 10.3 8 12.5 9 5 14 1.00
09FNR/L - B300- 6.0D14- R0.20 3.0 11.2 9.0 13.5 9 6 14 0.2 09FNR/L - R 300- 5.0D14 3.0 10.3 9 13.5 9 5 14 1.50
09FNR/L - R 300- 6.0D14 3.0 10.3 9 13.5 9 6 14 1.50
