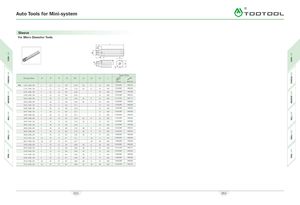

Auto Tools for Mini- system A\

Sleeve
For Micro Diameter Tools
L
LI
L2

2
fe 13
: :
H

T3
3
1
"


Spare Parts
Designation d D H d2 D2 LI L2 L3 L
Screw Wrench
TCL 1203 -100L- 2N 3 12 11 6.0 12.0 16 8 21 100 HS3040 P HW15 L
1204-100L - 2N 4 12 11 6.0 12.0 16 8 24 100 HS4040P HW 20 L
1205 -100L- 2N 5 12 11 8.0 12.0 29 100 HS4040P HW 20 L
1206-100L- 2N 6 12 11 8.0 12.0 31 100 HS 5050 P HW 25 L
1603 -100L- 2N 3 16 15 6.0 12.0 16 8 21 100 HS3040 P HW15 L
1604-100L - 2N 4 16 15 6.0 13.0 16 8 24 100 HS4040P HW 20 L
1605 -100L- 2N 5 16 15 8.0 14.7 29 100 HS4040P HW 20 L
1606-100L - 2N 6 16 15 8.0 15.0 31 100 HS 5050 P HW 25 L
1607-100L - 2N 7 16 15 8.0 15.7 33 100 HS6060 P HW 30 L
1608-100L- 2N 8 16 15 8.4 15.7 37 100 HS6060P HW 30 L
2003 -100L - 2N 3 20 19 6.0 13.0 16 8 21 100 HS4040P HW 20 L
2004-100L- 2N 4 20 19 6.0 13.0 16 8 24 100 HS4040P HW 20 L
2005 -100L - 2N 5 20 19 8.0 16.0 29 100 HS4040P HW 20 L
2006-100L - 2N 6 20 19 8.0 17.0 18 9 31 100 HS 5050 P HW 25 L
2007-100L - 2N 7 20 19 8.0 17.5 18 9 33 100 HS6060 P HW 30 L
2008-100L- 2N 8 20 19 8.4 19.0 18 9 37 100 HS6060P HW 30 L
2010-100L - 2N 10 20 19 8.4 19.7 10 45 100 HS6060 P HW 30 L
2012 -100L- 2N 12 20 19 8.4 19.7 10 48 100 HS6060 P HW 30 L
2504-100L - 2N 4 25 23 6.0 18.0 16 8 24 100 HS4040P HW 20 L
2505 -100L - 2N 5 25 23 8.0 18.0 18 9 29 100 HS 5050 P HW 25 L
2506-100L- 2N 6 25 23 8.0 18.0 18 9 31 100 HS 5050 P HW 25 L
2507-100L- 2N 7 25 23 8.0 18.0 18 9 33 100 HS6060 P HW 30 L
2508-100L - 2N 8 25 23 8.4 18.0 18 9 37 100 HS6060 P HW 30 L
2510-100L- 2N 10 25 23 8.4 18.0 18 9 45 100 HS6060 P HW 30 L
2512 -100L- 2N 12 25 23 8.4 18.0 20 10 48 100 HS6060 P HW 30 L


053 054
