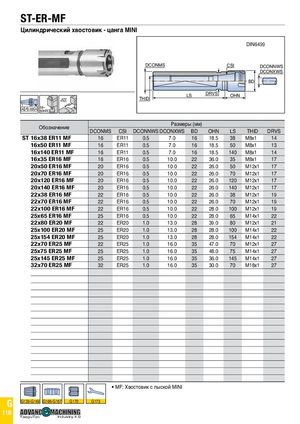

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 931

ST-ER-MF Цилиндрический хвостовик - цанга MINI DIN6499 DCONMS CSI DCONNWS DCONXWS BD N5 THID LS DRVS OHN A 0.005 A 58~60HRC Обозначение Размеры (мм)DCONMSCSIDCONNWS DCONXWSBDOHNLSTHIDDRVS ST 16x38 ER11 MF 16 ER11 0.5 7.0 16 18.5 38 M8x1 14 16x50 ER11 MF 16 ER11 0.5 7.0 16 18.5 50 M8x1 13 16x140 ER11 MF 16 ER11 0.5 7.0 16 18.5 140 M8x1 14 16x35 ER16 MF 16 ER16 0.5 10.0 22 36.0 35 M8x1 17 20x50 ER16 MF 20 ER16 0.5 10.0 22 26.0 50 M12x1 17 20x70 ER16 MF 20 ER16 0.5 10.0 22 26.0 70 M12x1 17 20x120 ER16 MF 20 ER16 0.5 10.0 22 26.0 120 M12x1 17 20x140 ER16 MF 20 ER16 0.5 10.0 22 26.0 140 M12x1 17 22x38 ER16 MF 22 ER16 0.5 10.0 22 26.0 38 M12x1 19 22x70 ER16 MF 22 ER16 0.5 10.0 22 26.0 70 M12x1 19 22x100 ER16 MF 22 ER16 0.5 10.0 22 28.0 100 M12x1 19 25x65 ER16 MF 25 ER16 0.5 10.0 22 28.0 65 M14x1 22 22x80 ER20 MF 22 ER20 1.0 13.0 28 39.0 80 M12x1 21 25x100 ER20 MF 25 ER20 1.0 13.0 28 28.0 100 M14x1 22 25x154 ER20 MF 25 ER20 1.0 13.0 28 28.0 154 M14x1 22 22x70 ER25 MF 22 ER25 1.0 16.0 35 47.0 70 M12x1 27 25x75 ER25 MF 25 ER25 1.0 16.0 35 48.0 75 M14x1 27 25x145 ER25 MF 25 ER25 1.0 16.0 35 36.0 145 M14x1 27 32x70 ER25 MF 32 ER25 1.0 16.0 35 30.0 70 M18x1 27 TaeguTec Industry 4.0 • MF: Хвостовик с лыской MINI G TaeguTec Industry 4.0G139-G149G166-G167G170G173 116 TaeguTec Industry 4.0
