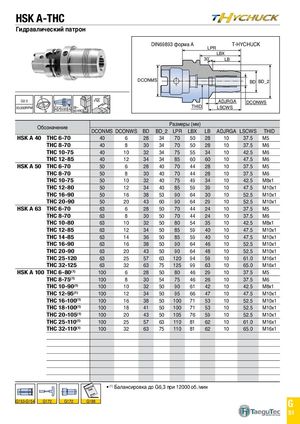

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 866

HSK A-THC Гидравлический патрон DIN69893 форма A LPR T-HYCHUCK LBX 30˚ LB DCONMS BD BD_2 G2.5 N5 ADJRGA DCONWS 20,000RPMCONTACT RATIO A 0.003 A 58~60 HRC THID LSCWS Обозначение Размеры (мм)DCONMSDCONWSBDBD_2LPRLBXLBADJRGALSCWSTHID HSK A 40 THC 6-70 40 6 28 34 70 50 28 10 37.5 M5 THC 8-70 40 8 30 34 70 50 28 10 37.5 M6 THC 10-75 40 10 32 34 75 55 34 10 42.5 M6 THC 12-85 40 12 34 34 85 60 60 10 47.5 M6 HSK A 50 THC 6-70 50 6 28 40 70 44 28 10 37.5 M5 THC 8-70 50 8 30 40 70 44 28 10 37.5 M6 THC 10-75 50 10 32 40 75 49 34 10 42.5 M8x1 THC 12-80 50 12 34 40 85 59 39 10 47.5 M10x1 THC 16-90 50 16 38 53 90 64 30 10 52.5 M10x1 THC 20-90 50 20 43 60 90 64 29 10 52.5 M10x1 HSK A 63 THC 6-70 63 6 28 50 70 44 24 10 37.5 M5 THC 8-70 63 8 30 50 70 44 24 10 37.5 M6 THC 10-80 63 10 32 50 80 54 35 10 42.5 M8x1 THC 12-85 63 12 34 50 85 59 40 10 47.5 M10x1 THC 14-85 63 14 36 50 85 59 40 10 47.5 M10x1 THC 16-90 63 16 38 50 90 64 46 10 52.5 M10x1 THC 20-90 63 20 43 50 90 64 48 10 52.5 M10x1 THC 25-120 63 25 57 63 120 94 59 10 61.0 M16x1 THC 32-125 63 32 63 75 125 99 63 10 65.0 M16x1 HSK A 100 THC 6-80(1) 100 6 28 50 80 46 29 10 37.5 M5 THC 8-75(1) 100 8 30 54 75 46 26 10 37.5 M6 THC 10-90(1) 100 10 32 50 90 61 42 10 42.5 M8x1 THC 12-95(1) 100 12 34 50 95 66 47 10 47.5 M10x1 THC 16-100(1) 100 16 38 50 100 71 53 10 52.5 M10x1 THC 18-100(1) 100 18 41 50 100 71 53 10 52.5 M10x1 THC 20-105(1) 100 20 43 50 105 76 59 10 52.5 M10x1 THC 25-110(1) 100 25 57 63 110 81 62 10 61.0 M16x1 THC 32-110(1) 100 32 63 75 110 81 62 10 65.0 M16x1 TechDnaitcaal • (1) Балансировка до G6,3 при 12000 об./мин G153-G154 G172 G172 G188 G 51
