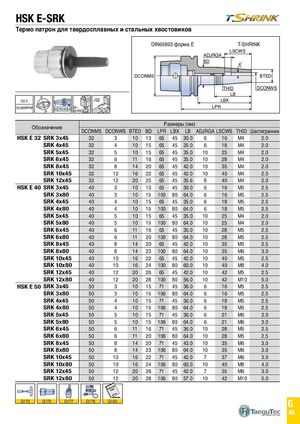

HSK E-SRK Термо патрон для твердосплавных и стальных хвостовиков DIN69893 форма E T-SHRINK ADJRGA LSCWS BD 4˚ DCONMS BTED THID DCONWS LB G2.5 N5 LBX 25,000RPMCONTACT RATIO A 0.003 A 58~60 HRC LPR Обозначение Размеры (мм)DCONMSDCONWSBTEDBDLPRLBXLBADJRGA LSCWSTHIDШестигранник HSK E 32 SRK 3x45 32 3 10 13 65 45 30.0 6 16 M4 2.0 SRK 4x45 32 4 10 15 65 45 35.0 6 18 M4 2.0 SRK 5x45 32 5 10 15 65 45 35.0 10 25 M4 2.0 SRK 6x45 32 6 11 16 65 45 35.0 10 28 M4 2.0 SRK 8x45 32 8 14 20 65 45 42.0 10 35 M4 2.0 SRK 10x45 32 12 16 22 65 45 42.0 10 40 M4 2.0 SRK 12x45 32 12 20 25 65 45 35.6 8 40 M4 2.0 HSK E 40 SRK 3x45 40 3 10 13 65 45 30.0 6 16 M5 2.5 SRK 3x80 40 3 10 19 100 80 64.0 6 16 M5 2.5 SRK 4x45 40 4 10 15 65 45 35.0 6 18 M5 2.5 SRK 4x80 40 4 10 19 100 80 64.0 6 18 M5 2.5 SRK 5x45 40 5 10 15 65 45 35.0 10 25 M4 2.0 SRK 5x80 40 5 10 19 100 80 64.0 10 25 M4 2.0 SRK 6x45 40 6 11 16 65 45 35.0 10 28 M5 2.5 SRK 6x80 40 6 11 20 100 80 64.0 10 28 M5 2.5 SRK 8x45 40 8 14 20 65 45 42.0 10 35 M5 2.5 SRK 8x80 40 8 14 23 100 80 64.0 10 35 M6 3.0 SRK 10x45 40 10 16 22 65 45 42.0 10 40 M5 2.5 SRK 10x80 40 10 16 24 100 80 60.0 10 40 M8 4.0 SRK 12x45 40 12 20 26 65 45 42.0 10 42 M5 2.5 SRK 12x80 40 12 20 28 100 80 56.0 10 42 M10 5.0 HSK E 50 SRK 3x45 50 3 10 15 71 45 36.0 6 16 M5 2.5 SRK 3x80 50 3 10 19 106 80 64.0 6 16 M5 2.5 SRK 4x45 50 4 10 15 71 45 36.0 6 18 M5 2.5 SRK 4x80 50 4 10 19 106 80 64.0 6 18 M5 2.5 SRK 5x45 50 5 10 15 71 45 36.0 6 21 M6 3.0 SRK 5x80 50 5 10 15 106 80 64.0 6 21 M6 3.0 SRK 6x45 50 6 11 16 71 45 36.0 10 28 M5 2.5 SRK 6x80 50 6 11 20 106 80 64.0 10 28 M5 2.5 SRK 8x45 50 8 14 20 71 45 43.0 10 35 M6 3.0 SRK 8x80 50 8 14 23 106 80 64.0 10 35 M6 3.0 SRK 10x45 50 10 16 22 71 45 42.0 7 37 M6 3.0 SRK 10x80 50 10 16 24 106 80 60.0 10 40 M8 4.0 SRK 12x45 50 12 20 26 71 45 42.0 7 39 M6 3.0 SRK 12x80 50 12 20 28 106 80 57.0 10 42 M10 5.0 TechDnaitcaal G172 G172 G177 G178 G190 G 49
