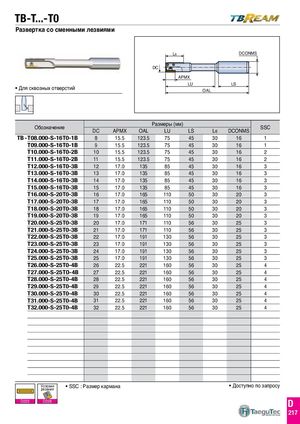

TB-T...-T0
Развертка со сменными лезвиями
DC
- Для сквозных отверстий
L6 DCONMS
APMX LU LS OAL
| Обозначение | Ра | змеры(м | м) | SSC | ||||
| DC | APMX | OAL | LU | LS | L6 | DCONMS | ||
| TB-T08.000-S-16T0-1B | 8 | 15.5 | 123.5 | 75 | 45 | 30 | 16 | 1 |
| T09.000-S-16T0-1B | 9 | 15.5 | 123.5 | 75 | 45 | 30 | 16 | 1 |
| T10.000-S-16T0-2B | 10 | 15.5 | 123.5 | 75 | 45 | 30 | 16 | 2 |
| T11.000-S-16T0-2B | 11 | 15.5 | 123.5 | 75 | 45 | 30 | 16 | 2 |
| T12.000-S-16T0-3B | 12 | 17.0 | 135 | 85 | 45 | 30 | 16 | 3 |
| T13.000-S-16T0-3B | 13 | 17.0 | 135 | 85 | 45 | 30 | 16 | 3 |
| T14.000-S-16T0-3B | 14 | 17.0 | 135 | 85 | 45 | 30 | 16 | 3 |
| T15.000-S-16T0-3B | 15 | 17.0 | 135 | 85 | 45 | 30 | 16 | 3 |
| T16.000-S-20T0-3B | 16 | 17.0 | 165 | 110 | 50 | 30 | 20 | 3 |
| T17.000-S-20T0-3B | 17 | 17.0 | 165 | 110 | 50 | 30 | 20 | 3 |
| T18.000-S-20T0-3B | 18 | 17.0 | 165 | 110 | 50 | 30 | 20 | 3 |
| T19.000-S-20T0-3B | 19 | 17.0 | 165 | 110 | 50 | 30 | 20 | 3 |
| T20.000-S-25T0-3B | 20 | 17.0 | 171 | 110 | 56 | 30 | 25 | 3 |
| T21.000-S-25T0-3B | 21 | 17.0 | 171 | 110 | 56 | 30 | 25 | 3 |
| T22.000-S-25T0-3B | 22 | 17.0 | 191 | 130 | 56 | 30 | 25 | 3 |
| T23.000-S-25T0-3B | 23 | 17.0 | 191 | 130 | 56 | 30 | 25 | 3 |
| T24.000-S-25T0-3B | 24 | 17.0 | 191 | 130 | 56 | 30 | 25 | 3 |
| T25.000-S-25T0-3B | 25 | 17.0 | 191 | 130 | 56 | 30 | 25 | 3 |
| T26.000-S-25T0-4B | 26 | 22.5 | 221 | 160 | 56 | 30 | 25 | 4 |
| T27.000-S-25TO-4B | 27 | 22.5 | 221 | 160 | 56 | 30 | 25 | 4 |
| T28.000-S-25T0-4B | 28 | 22.5 | 221 | 160 | 56 | 30 | 25 | 4 |
| T29.000-S-25T0-4B | 29 | 22.5 | 221 | 160 | 56 | 30 | 25 | 4 |
| T30.000-S-25T0-4B | 30 | 22.5 | 221 | 160 | 56 | 30 | 25 | 4 |
| T31.000-S-25T0-4B | 31 | 22.5 | 221 | 160 | 56 | 30 | 25 | 4 |
| T32.000-S-25T0-4B | 32 | 22.5 | 221 | 160 | 56 | 30 | 25 | 4 |
Условия SSC : Размер кармана Доступно по запросу
