Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 276
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021

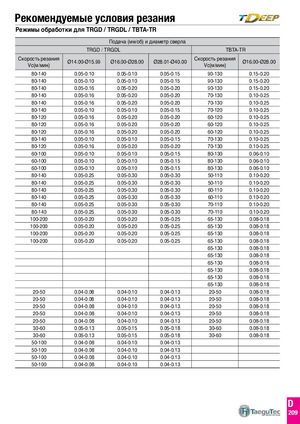

Режимы обработки для TRGD / TRGDL / TBTA-TR
| С | TRGD / T | Подача(мм/об)и RGDL | диаметрсверла | TBTA- С | TR |
| корость резания Vc(м/мин) | Ø14.00-Ø15.99 | Ø16.00-Ø28.00 | Ø28.01-Ø40.00 | корость резания Vc(м/мин) | Ø16.00-Ø28.00 |
| 80-140 | 0.05-0.10 | 0.05-0.10 | 0.05-0.15 | 90-130 | 0.15-0.20 |
| 80-140 | 0.05-0.10 | 0.05-0.10 | 0.05-0.15 | 90-130 | 0.15-0.20 |
| 80-140 | 0.05-0.16 | 0.05-0.20 | 0.05-0.20 | 90-130 | 0.15-0.20 |
| 80-140 | 0.05-0.16 | 0.05-0.20 | 0.05-0.20 | 70-130 | 0.10-0.25 |
| 80-140 | 0.05-0.16 | 0.05-0.20 | 0.05-0.20 | 70-130 | 0.10-0.25 |
| 80-140 | 0.05-0.10 | 0.05-0.10 | 0.05-0.15 | 70-120 | 0.10-0.25 |
| 80-120 | 0.05-0.16 | 0.05-0.20 | 0.05-0.20 | 60-120 | 0.10-0.25 |
| 80-120 | 0.05-0.16 | 0.05-0.20 | 0.05-0.20 | 60-120 | 0.10-0.25 |
| 80-120 | 0.05-0.16 | 0.05-0.20 | 0.05-0.20 | 60-120 | 0.10-0.25 |
| 80-140 | 0.05-0.10 | 0.05-0.10 | 0.05-0.15 | 70-130 | 0.10-0.25 |
| 80-120 | 0.05-0.16 | 0.05-0.20 | 0.05-0.20 | 70-130 | 0.10-0.25 |
| 60-100 | 0.05-0.10 | 0.05-0.10 | 0.05-0.15 | 80-130 | 0.06-0.10 |
| 60-100 | 0.05-0.10 | 0.05-0.10 | 0.05-0.15 | 80-130 | 0.06-0.10 |
| 60-100 | 0.05-0.10 | 0.05-0.10 | 0.05-0.15 | 80-130 | 0.06-0.10 |
| 80-140 | 0.05-0.25 | 0.05-0.30 | 0.05-0.30 | 50-110 | 0.10-0.20 |
| 80-140 | 0.05-0.25 | 0.05-0.30 | 0.05-0.30 | 50-110 | 0.10-0.20 |
| 80-140 | 0.05-0.25 | 0.05-0.30 | 0.05-0.30 | 60-110 | 0.10-0.20 |
| 80-140 | 0.05-0.25 | 0.05-0.30 | 0.05-0.30 | 60-110 | 0.10-0.20 |
| 80-140 | 0.05-0.25 | 0.05-0.30 | 0.05-0.30 | 70-110 | 0.10-0.20 |
| 80-140 | 0.05-0.25 | 0.05-0.30 | 0.05-0.30 | 70-110 | 0.10-0.20 |
| 100-200 | 0.05-0.20 | 0.05-0.20 | 0.05-0.25 | 65-130 | 0.08-0.18 |
| 100-200 | 0.05-0.20 | 0.05-0.20 | 0.05-0.25 | 65-130 | 0.08-0.18 |
| 100-200 | 0.05-0.20 | 0.05-0.20 | 0.05-0.25 | 65-130 | 0.08-0.18 |
| 100-200 | 0.05-0.20 | 0.05-0.20 | 0.05-0.25 | 65-130 | 0.08-0.18 |
| 65-130 | 0.08-0.18 | ||||
| 65-130 | 0.08-0.18 | ||||
| 65-130 | 0.08-0.18 | ||||
| 65-130 | 0.08-0.18 | ||||
| 65-130 | 0.08-0.18 | ||||
| 65-130 | 0.08-0.18 | ||||
| 20-50 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | 20-50 | 0.08-0.18 |
| 20-50 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | 20-50 | 0.08-0.18 |
| 20-50 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | 20-50 | 0.08-0.18 |
| 20-50 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | 20-50 | 0.08-0.18 |
| 20-50 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | 20-50 | 0.08-0.18 |
| 30-60 | 0.05-0.13 | 0.05-0.15 | 0.05-0.18 | 30-60 | 0.08-0.18 |
| 30-60 | 0.05-0.13 | 0.05-0.15 | 0.05-0.18 | 30-60 | 0.08-0.18 |
| 50-100 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | ||
| 50-100 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | ||
| 50-100 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 | ||
| 50-100 | 0.04-0.08 | 0.04-0.10 | 0.04-0.13 |
