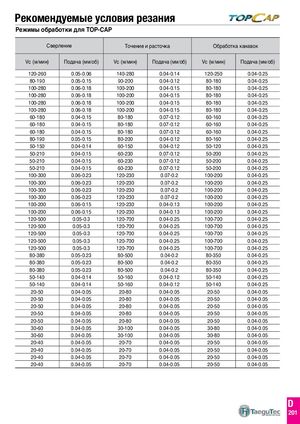

Режимы обработки для TOP-CAP
| Свер | ление | Точение | и расточка | Обработ | ка канавок |
| Vc (м/мин) | Подача (мм/об) | Vc (м/мин) | Подача (мм/об) | Vc (м/мин) | Подача (мм/об) |
| 120-260 | 0.05-0.06 | 140-280 | 0.04-0.14 | 120-250 | 0.04-0.25 |
| 80-190 | 0.05-0.15 | 90-200 | 0.04-0.12 | 80-180 | 0.04-0.25 |
| 100-280 | 0.06-0.18 | 100-200 | 0.04-0.15 | 80-180 | 0.04-0.25 |
| 100-280 | 0.06-0.18 | 100-200 | 0.04-0.15 | 80-180 | 0.04-0.25 |
| 100-280 | 0.06-0.18 | 100-200 | 0.04-0.15 | 80-180 | 0.04-0.25 |
| 100-280 | 0.06-0.18 | 100-200 | 0.04-0.15 | 80-180 | 0.04-0.25 |
| 60-180 | 0.04-0.15 | 80-180 | 0.07-0.12 | 60-160 | 0.04-0.25 |
| 60-180 | 0.04-0.15 | 80-180 | 0.07-0.12 | 60-160 | 0.04-0.25 |
| 60-180 | 0.04-0.15 | 80-180 | 0.07-0.12 | 60-160 | 0.04-0.25 |
| 80-190 | 0.05-0.15 | 80-200 | 0.04-0.12 | 80-160 | 0.04-0.25 |
| 50-150 | 0.04-0.14 | 60-150 | 0.04-0.12 | 50-120 | 0.04-0.25 |
| 50-210 | 0.04-0.15 | 60-230 | 0.07-0.12 | 50-200 | 0.04-0.25 |
| 50-210 | 0.04-0.15 | 60-230 | 0.07-0.12 | 50-200 | 0.04-0.25 |
| 50-210 | 0.04-0.15 | 60-230 | 0.07-0.12 | 50-200 | 0.04-0.25 |
| 100-300 | 0.06-0.23 | 120-230 | 0.07-0.2 | 100-200 | 0.04-0.25 |
| 100-300 | 0.06-0.23 | 120-230 | 0.07-0.2 | 100-200 | 0.04-0.25 |
| 100-300 | 0.06-0.23 | 120-230 | 0.07-0.2 | 100-200 | 0.04-0.25 |
| 100-300 | 0.06-0.23 | 120-230 | 0.07-0.2 | 100-200 | 0.04-0.25 |
| 100-200 | 0.06-0.15 | 120-230 | 0.04-0.13 | 100-200 | 0.04-0.25 |
| 100-200 | 0.06-0.15 | 120-230 | 0.04-0.13 | 100-200 | 0.04-0.25 |
| 120-500 | 0.05-0.3 | 120-700 | 0.04-0.25 | 100-700 | 0.04-0.25 |
| 120-500 | 0.05-0.3 | 120-700 | 0.04-0.25 | 100-700 | 0.04-0.25 |
| 120-500 | 0.05-0.3 | 120-700 | 0.04-0.25 | 100-700 | 0.04-0.25 |
| 120-500 | 0.05-0.3 | 120-700 | 0.04-0.25 | 100-700 | 0.04-0.25 |
| 120-500 | 0.05-0.3 | 120-700 | 0.04-0.25 | 100-700 | 0.04-0.25 |
| 80-380 | 0.05-0.23 | 80-500 | 0.04-0.2 | 80-350 | 0.04-0.25 |
| 80-380 | 0.05-0.23 | 80-500 | 0.04-0.2 | 80-350 | 0.04-0.25 |
| 80-380 | 0.05-0.23 | 80-500 | 0.04-0.2 | 80-350 | 0.04-0.25 |
| 50-140 | 0.04-0.14 | 50-160 | 0.04-0.12 | 50-140 | 0.04-0.25 |
| 50-140 | 0.04-0.14 | 50-160 | 0.04-0.12 | 50-140 | 0.04-0.25 |
| 20-50 | 0.04-0.05 | 20-80 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 20-50 | 0.04-0.05 | 20-80 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 20-50 | 0.04-0.05 | 20-80 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 20-50 | 0.04-0.05 | 20-80 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 20-50 | 0.04-0.05 | 20-80 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 30-60 | 0.04-0.05 | 30-100 | 0.04-0.05 | 30-80 | 0.04-0.05 |
| 30-60 | 0.04-0.05 | 30-100 | 0.04-0.05 | 30-80 | 0.04-0.05 |
| 20-40 | 0.04-0.05 | 20-70 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 20-40 | 0.04-0.05 | 20-70 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 20-40 | 0.04-0.05 | 20-70 | 0.04-0.05 | 20-50 | 0.04-0.05 |
| 20-40 | 0.04-0.05 | 20-70 | 0.04-0.05 | 20-50 | 0.04-0.05 |
