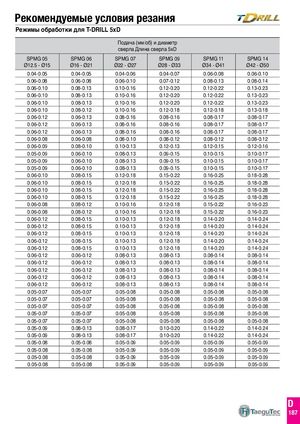

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 254

Предыдущая страница Следующая страница

Навигация

Режимы обработки для T-DRILL 5xD

Подача (мм/о сверла Длинб) и диаметр а сверла 5xD
SPMG 05SPMG 06SPMG 07SPMG 09SPMG 11SPMG 14
Ø12.5 - Ø15Ø16 - Ø21Ø22 - Ø27Ø28 - Ø33Ø34 - Ø41Ø42 - Ø50
0.04-0.050.04-0.050.04-0.060.04-0.070.06-0.080.06-0.10
0.06-0.080.06-0.080.06-0.100.07-0.120.08-0.130.08-0.14
0.06-0.100.08-0.130.10-0.160.12-0.200.12-0.220.13-0.23
0.06-0.100.08-0.130.10-0.160.12-0.200.12-0.220.13-0.23
0.06-0.100.08-0.130.10-0.160.12-0.200.12-0.220.13-0.23
0.06-0.100.08-0.120.10-0.160.12-0.180.12-0.180.13-0.18
0.06-0.120.06-0.130.08-0.160.08-0.160.08-0.170.08-0.17
0.06-0.120.06-0.130.08-0.160.08-0.160.08-0.170.08-0.17
0.06-0.120.06-0.130.08-0.160.08-0.160.08-0.170.08-0.17
0.06-0.080.06-0.080.08-0.100.08-0.120.08-0.120.08-0.12
0.06-0.090.08-0.100.10-0.130.12-0.130.12-0.150.12-0.16
0.05-0.090.06-0.100.08-0.130.09-0.150.10-0.150.10-0.17
0.05-0.090.06-0.100.08-0.130.09-0.150.10-0.150.10-0.17
0.05-0.090.06-0.100.08-0.130.09-0.150.10-0.150.10-0.17
0.06-0.100.08-0.150.12-0.180.15-0.220.16-0.250.18-0.28
0.06-0.100.08-0.150.12-0.180.15-0.220.16-0.250.18-0.28
0.06-0.100.08-0.150.12-0.180.15-0.220.16-0.250.18-0.28
0.06-0.100.08-0.150.12-0.180.15-0.220.16-0.250.18-0.28
0.06-0.080.08-0.120.10-0.160.12-0.180.15-0.220.16-0.23
0.06-0.080.08-0.120.10-0.160.12-0.180.15-0.220.16-0.23
0.06-0.120.08-0.150.10-0.130.12-0.180.14-0.200.14-0.24
0.06-0.120.08-0.150.10-0.130.12-0.180.14-0.200.14-0.24
0.06-0.120.08-0.150.10-0.130.12-0.180.14-0.200.14-0.24
0.06-0.120.08-0.150.10-0.130.12-0.180.14-0.200.14-0.24
0.06-0.120.08-0.150.10-0.130.12-0.180.14-0.200.14-0.24
0.06-0.120.06-0.120.08-0.130.08-0.130.08-0.140.08-0.14
0.06-0.120.06-0.120.08-0.130.08-0.130.08-0.140.08-0.14
0.06-0.120.06-0.120.08-0.130.08-0.130.08-0.140.08-0.14
0.06-0.120.06-0.120.08-0.130.08-0.130.08-0.140.08-0.14
0.06-0.120.06-0.120.08-0.130.08-0.130.08-0.140.08-0.14
0.05-0.070.05-0.070.05-0.080.05-0.080.05-0.080.05-0.08
0.05-0.070.05-0.070.05-0.080.05-0.080.05-0.080.05-0.08
0.05-0.070.05-0.070.05-0.080.05-0.080.05-0.080.05-0.08
0.05-0.070.05-0.070.05-0.080.05-0.080.05-0.080.05-0.08
0.05-0.070.05-0.070.05-0.080.05-0.080.05-0.080.05-0.08
0.05-0.090.08-0.130.08-0.170.10-0.200.14-0.220.14-0.24
0.05-0.090.08-0.130.08-0.170.10-0.200.14-0.220.14-0.24
0.05-0.080.05-0.080.05-0.090.05-0.090.05-0.090.05-0.09
0.05-0.080.05-0.080.05-0.090.05-0.090.05-0.090.05-0.09
0.05-0.080.05-0.080.05-0.090.05-0.090.05-0.090.05-0.09
0.05-0.080.05-0.080.05-0.090.05-0.090.05-0.090.05-0.09
