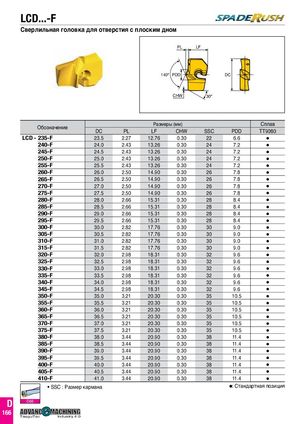

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 233

LCD...-F
Сверлильная головка для отверстия с плоским дном
PL LF


140º PDD DC

CHW 30º


Размеры (мм) Сплав
Обозначение
DC PL LF CHW SSC PDD TT9080
LCD - 235-F 23.5 2.27 12.76 0.30 22 6.6 
240-F 24.0 2.43 13.26 0.30 24 7.2 
245-F 24.5 2.43 13.26 0.30 24 7.2 
250-F 25.0 2.43 13.26 0.30 24 7.2 
255-F 25.5 2.43 13.26 0.30 24 7.2 
260-F 26.0 2.50 14.90 0.30 26 7.8 
265-F 26.5 2.50 14.90 0.30 26 7.8 
270-F 27.0 2.50 14.90 0.30 26 7.8 
275-F 27.5 2.50 14.90 0.30 26 7.8 
280-F 28.0 2.66 15.31 0.30 28 8.4 
285-F 28.5 2.66 15.31 0.30 28 8.4 
290-F 29.0 2.66 15.31 0.30 28 8.4 
295-F 29.5 2.66 15.31 0.30 28 8.4 
300-F 30.0 2.82 17.76 0.30 30 9.0 
305-F 30.5 2.82 17.76 0.30 30 9.0 
310-F 31.0 2.82 17.76 0.30 30 9.0 
315-F 31.5 2.82 17.76 0.30 30 9.0 
320-F 32.0 2.98 18.31 0.30 32 9.6 
325-F 32.5 2.98 18.31 0.30 32 9.6 
330-F 33.0 2.98 18.31 0.30 32 9.6 
335-F 33.5 2.98 18.31 0.30 32 9.6 
340-F 34.0 2.98 18.31 0.30 32 9.6 
345-F 34.5 2.98 18.31 0.30 32 9.6 
350-F 35.0 3.21 20.30 0.30 35 10.5 
355-F 35.5 3.21 20.30 0.30 35 10.5 
360-F 36.0 3.21 20.30 0.30 35 10.5 
365-F 36.5 3.21 20.30 0.30 35 10.5 
370-F 37.0 3.21 20.30 0.30 35 10.5 
375-F 37.5 3.21 20.30 0.30 35 10.5 
380-F 38.0 3.44 20.90 0.30 38 11.4 
385-F 38.5 3.44 20.90 0.30 38 11.4 
390-F 39.0 3.44 20.90 0.30 38 11.4 
395-F 39.5 3.44 20.90 0.30 38 11.4 
400-F 40.0 3.44 20.90 0.30 38 11.4 
405-F 40.5 3.44 20.90 0.30 38 11.4 
410-F
TaeguTec Industry 4.0 41.0 3.44 20.90 0.30 38 11.4 
• SSC : Размер кармана : Стандартная позиция
