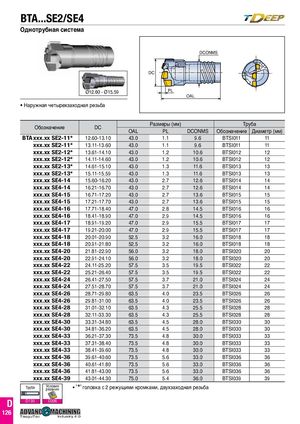

BTA...SE2/SE4
DC Ø12.60 - Ø15.59
- Наружная четырехзаходная резьба
PL
DCONMS
OAL
| Обозначение | DC | OAL | Размеры(мм PL | ) DCONMS | Тр Обозначение | уба Диаметр (мм) |
| BTA xxx.xx SE2-11 | 12.60-13.10 | 43.0 | 1.1 | 9.6 | BTSI011 | 11 |
| xxx.xx SE2-11 | 13.11-13.60 | 43.0 | 1.1 | 9.6 | BTSI011 | 11 |
| xxx.xx SE2-12 | 13.61-14.10 | 43.0 | 1.2 | 10.6 | BTSI012 | 12 |
| xxx.xx SE2-12 | 14.11-14.60 | 43.0 | 1.2 | 10.6 | BTSI012 | 12 |
| xxx.xx SE2-13 | 14.61-15.10 | 43.0 | 1.3 | 11.6 | BTSI013 | 13 |
| xxx.xx SE2-13 | 15.11-15.59 | 43.0 | 1.3 | 11.6 | BTSI013 | 13 |
| xxx.xx SE4-14 | 15.60-16.20 | 43.0 | 2.7 | 12.6 | BTSI014 | 14 |
| xxx.xx SE4-14 | 16.21-16.70 | 43.0 | 2.7 | 12.6 | BTSI014 | 14 |
| xxx.xx SE4-15 | 16.71-17.20 | 43.0 | 2.7 | 13.6 | BTSI015 | 15 |
| xxx.xx SE4-15 | 17.21-17.70 | 43.0 | 2.7 | 13.6 | BTSI015 | 15 |
| xxx.xx SE4-16 | 17.71-18.40 | 47.0 | 2.8 | 14.5 | BTSI016 | 16 |
| xxx.xx SE4-16 | 18.41-18.90 | 47.0 | 2.9 | 14.5 | BTSI016 | 16 |
| xxx.xx SE4-17 | 18.91-19.20 | 47.0 | 2.9 | 15.5 | BTSI017 | 17 |
| xxx.xx SE4-17 | 19.21-20.00 | 47.0 | 2.9 | 15.5 | BTSI017 | 17 |
| xxx.xx SE4-18 | 20.01-20.90 | 52.5 | 3.2 | 16.0 | BTSI018 | 18 |
| xxx.xx SE4-18 | 20.91-21.80 | 52.5 | 3.2 | 16.0 | BTSI018 | 18 |
| xxx.xx SE4-20 | 21.81-22.90 | 56.0 | 3.2 | 18.0 | BTSI020 | 20 |
| xxx.xx SE4-20 | 22.91-24.10 | 56.0 | 3.2 | 18.0 | BTSI020 | 20 |
| xxx.xx SE4-22 | 24.11-25.20 | 57.5 | 3.5 | 19.5 | BTSI022 | 22 |
| xxx.xx SE4-22 | 25.21-26.40 | 57.5 | 3.5 | 19.5 | BTSI022 | 22 |
| xxx.xx SE4-24 | 26.41-27.50 | 57.5 | 3.7 | 21.0 | BTSI024 | 24 |
| xxx.xx SE4-24 | 27.51-28.70 | 57.5 | 3.7 | 21.0 | BTSI024 | 24 |
| xxx.xx SE4-26 | 28.71-29.80 | 63.5 | 4.0 | 23.5 | BTSI026 | 26 |
| xxx.xx SE4-26 | 29.81-31.00 | 63.5 | 4.0 | 23.5 | BTSI026 | 26 |
| xxx.xx SE4-28 | 31.01-32.10 | 63.5 | 4.3 | 25.5 | BTSI028 | 28 |
| xxx.xx SE4-28 | 32.11-33.30 | 63.5 | 4.3 | 25.5 | BTSI028 | 28 |
| xxx.xx SE4-30 | 33.31-34.80 | 63.5 | 4.5 | 28.0 | BTSI030 | 30 |
| xxx.xx SE4-30 | 34.81-36.20 | 63.5 | 4.5 | 28.0 | BTSI030 | 30 |
| xxx.xx SE4-33 | 36.21-37.30 | 73.5 | 4.8 | 30.0 | BTSI033 | 33 |
| xxx.xx SE4-33 | 37.31-38.40 | 73.5 | 4.8 | 30.0 | BTSI033 | 33 |
| xxx.xx SE4-33 | 38.41-39.60 | 73.5 | 4.8 | 30.0 | BTSI033 | 33 |
| xxx.xx SE4-36 | 39.61-40.60 | 73.5 | 5.6 | 33.0 | BTSI036 | 36 |
| xxx.xx SE4-36 | 40.61-41.80 | 73.5 | 5.6 | 33.0 | BTSI036 | 36 |
| xxx.xx SE4-36 | 41.81-43.00 | 73.5 | 5.6 | 33.0 | BTSI036 | 36 |
| xxx.xxSE4-39 | 43.01-44.30 | 75.0 | 5.4 | 36.0 | BTSI039 | 39 |
TaeguTec Industry 4.0⁎
Труба Условия ' ' головка с 2 режущими кромками, двухзаходная резьба
