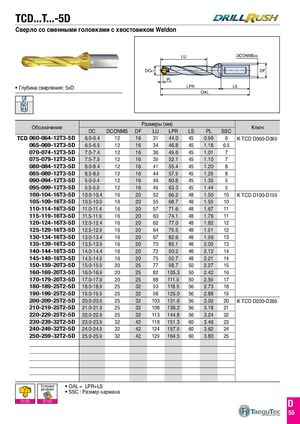

LU DCONMSh6 DC k7 DF PL
Глубина сверления: 5xD LPR LS
OAL
| Об | Ра | змеры | (мм) | К | |||||
| означение | DC | DCONMS | DF | LU | LPR | LS | PL | SSC | люч |
| TCD 060-064-12T3-5D | 6.0-6.4 | 12 | 16 | 31 | 44.0 | 45 | 0.96 | 6 | K TCD D060-D099 |
| 065-069-12T3-5D | 6.5-6.9 | 12 | 16 | 34 | 46.8 | 45 | 1.18 | 6.5 | |
| 070-074-12T3-5D | 7.0-7.4 | 12 | 16 | 36 | 49.6 | 45 | 1.01 | 7 | |
| 075-079-12T3-5D | 7.5-7.9 | 12 | 16 | 39 | 52.1 | 45 | 1.10 | 7 | |
| 080-084-12T3-5D | 8.0-8.4 | 12 | 16 | 41 | 55.4 | 45 | 1.20 | 8 | |
| 085-089-12T3-5D | 8.5-8.9 | 12 | 16 | 44 | 57.9 | 45 | 1.29 | 8 | |
| 090-094-12T3-5D | 9.0-9.4 | 12 | 16 | 46 | 60.8 | 45 | 1.35 | 9 | |
| 095-099-12T3-5D | 9.5-9.9 | 12 | 16 | 49 | 63.3 | 45 | 1.44 | 9 | |
| 100-104-16T3-5D | 10.0-10.4 | 16 | 20 | 52 | 66.2 | 48 | 1.50 | 10 | K TCD D100-D199 |
| 105-109-16T3-5D | 10.5-10.9 | 16 | 20 | 55 | 68.7 | 48 | 1.59 | 10 | |
| 110-114-16T3-5D | 11.0-11.4 | 16 | 20 | 57 | 71.6 | 48 | 1.67 | 11 | |
| 115-119-16T3-5D | 11.5-11.9 | 16 | 20 | 60 | 74.1 | 48 | 1.76 | 11 | |
| 120-124-16T3-5D | 12.0-12.4 | 16 | 20 | 62 | 77.0 | 48 | 1.82 | 12 | |
| 125-129-16T3-5D | 12.5-12.9 | 16 | 20 | 64 | 79.5 | 48 | 1.91 | 12 | |
| 130-134-16T3-5D | 13.0-13.4 | 16 | 20 | 67 | 82.6 | 48 | 1.96 | 13 | |
| 135-139-16T3-5D | 13.5-13.9 | 16 | 20 | 70 | 85.1 | 48 | 2.05 | 13 | |
| 140-144-16T3-5D | 14.0-14.4 | 16 | 20 | 72 | 90.2 | 48 | 2.12 | 14 | |
| 145-149-16T3-5D | 14.5-14.9 | 16 | 20 | 75 | 92.7 | 48 | 2.21 | 14 | |
| 150-159-20T3-5D | 15.0-15.9 | 20 | 25 | 77 | 98.7 | 50 | 2.27 | 15 | |
| 160-169-20T3-5D | 16.0-16.9 | 20 | 25 | 82 | 105.3 | 50 | 2.42 | 16 | |
| 170-179-20T3-5D | 17.0-17.9 | 20 | 25 | 88 | 111.9 | 50 | 2.59 | 17 | |
| 180-189-25T2-5D | 18.0-18.9 | 25 | 32 | 93 | 118.5 | 56 | 2.73 | 18 | |
| 190-199-25T2-5D | 19.0-19.9 | 25 | 32 | 98 | 125.0 | 56 | 2.88 | 19 | |
| 200-209-25T2-5D | 20.0-20.9 | 25 | 32 | 103 | 131.6 | 56 | 3.02 | 20 | K TCD D200-D269 |
| 210-219-25T2-5D | 21.0-21.9 | 25 | 32 | 108 | 138.2 | 56 | 3.18 | 21 | |
| 220-229-25T2-5D | 22.0-22.9 | 25 | 32 | 113 | 144.8 | 56 | 3.24 | 22 | |
| 230-239-32T2-5D | 23.0-23.9 | 32 | 42 | 118 | 151.3 | 60 | 3.46 | 23 | |
| 240-249-32T2-5D | 24.0-24.9 | 32 | 42 | 124 | 157.9 | 60 | 3.62 | 24 | |
| 250-259-32T2-5D | 25.0-25.9 | 32 | 42 | 129 | 164.5 | 60 | 3.80 | 25 |
