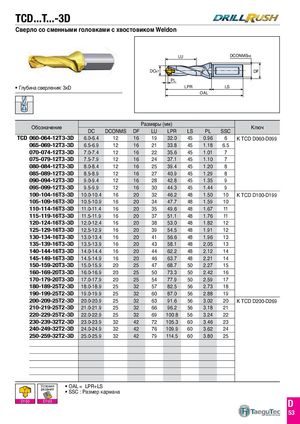

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 120
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
LU DCONMSh6 DC k7 DF PL
Глубина сверления: 3xD LPR LS
OAL
| Об | Р | азмеры | (мм) | К | |||||
| означение | DC | DCONMS | DF | LU | LPR | LS | PL | SSC | люч |
| TCD 060-064-12T3-3D | 6.0-6.4 | 12 | 16 | 19 | 32.0 | 45 | 0.96 | 6 | K TCD D060-D099 |
| 065-069-12T3-3D | 6.5-6.9 | 12 | 16 | 21 | 33.8 | 45 | 1.18 | 6.5 | |
| 070-074-12T3-3D | 7.0-7.4 | 12 | 16 | 22 | 35.6 | 45 | 1.01 | 7 | |
| 075-079-12T3-3D | 7.5-7.9 | 12 | 16 | 24 | 37.1 | 45 | 1.10 | 7 | |
| 080-084-12T3-3D | 8.0-8.4 | 12 | 16 | 25 | 39.4 | 45 | 1.20 | 8 | |
| 085-089-12T3-3D | 8.5-8.9 | 12 | 16 | 27 | 40.9 | 45 | 1.29 | 8 | |
| 090-094-12T3-3D | 9.0-9.4 | 12 | 16 | 28 | 42.8 | 45 | 1.35 | 9 | |
| 095-099-12T3-3D | 9.5-9.9 | 12 | 16 | 30 | 44.3 | 45 | 1.44 | 9 | |
| 100-104-16T3-3D | 10.0-10.4 | 16 | 20 | 32 | 46.2 | 48 | 1.50 | 10 | K TCD D100-D199 |
| 105-109-16T3-3D | 10.5-10.9 | 16 | 20 | 34 | 47.7 | 48 | 1.59 | 10 | |
| 110-114-16T3-3D | 11.0-11.4 | 16 | 20 | 35 | 49.6 | 48 | 1.67 | 11 | |
| 115-119-16T3-3D | 11.5-11.9 | 16 | 20 | 37 | 51.1 | 48 | 1.76 | 11 | |
| 120-124-16T3-3D | 12.0-12.4 | 16 | 20 | 38 | 53.0 | 48 | 1.82 | 12 | |
| 125-129-16T3-3D | 12.5-12.9 | 16 | 20 | 39 | 54.5 | 48 | 1.91 | 12 | |
| 130-134-16T3-3D | 13.0-13.4 | 16 | 20 | 41 | 56.6 | 48 | 1.96 | 13 | |
| 135-139-16T3-3D | 13.5-13.9 | 16 | 20 | 43 | 58.1 | 48 | 2.05 | 13 | |
| 140-144-16T3-3D | 14.0-14.4 | 16 | 20 | 44 | 62.2 | 48 | 2.12 | 14 | |
| 145-149-16T3-3D | 14.5-14.9 | 16 | 20 | 46 | 63.7 | 48 | 2.21 | 14 | |
| 150-159-20T3-3D | 15.0-15.9 | 20 | 25 | 47 | 68.7 | 50 | 2.27 | 15 | |
| 160-169-20T3-3D | 16.0-16.9 | 20 | 25 | 50 | 73.3 | 50 | 2.42 | 16 | |
| 170-179-20T3-3D | 17.0-17.9 | 20 | 25 | 54 | 77.9 | 50 | 2.59 | 17 | |
| 180-189-25T2-3D | 18.0-18.9 | 25 | 32 | 57 | 82.5 | 56 | 2.73 | 18 | |
| 190-199-25T2-3D | 19.0-19.9 | 25 | 32 | 60 | 87.0 | 56 | 2.88 | 19 | |
| 200-209-25T2-3D | 20.0-20.9 | 25 | 32 | 63 | 91.6 | 56 | 3.02 | 20 | K TCD D200-D269 |
| 210-219-25T2-3D | 21.0-21.9 | 25 | 32 | 66 | 96.2 | 56 | 3.18 | 21 | |
| 220-229-25T2-3D | 22.0-22.9 | 25 | 32 | 69 | 100.8 | 56 | 3.24 | 22 | |
| 230-239-32T2-3D | 23.0-23.9 | 32 | 42 | 72 | 105.3 | 60 | 3.46 | 23 | |
| 240-249-32T2-3D | 24.0-24.9 | 32 | 42 | 76 | 109.9 | 60 | 3.62 | 24 | |
| 250-259-32T2-3D | 25.0-25.9 | 32 | 42 | 79 | 114.5 | 60 | 3.80 | 25 |
