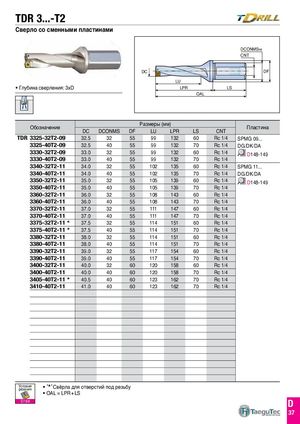

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 104
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 3xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | Р | азмеры( | мм) | Пластина | ||||
| DC | DCONMS | DF | LU | LPR | LS | CNT | ||
| TDR 3325-32T2-09 | 32.5 | 32 | 55 | 99 | 132 | 60 | Rc 1/4 | SPMG 09... |
| 3325-40T2-09 | 32.5 | 40 | 55 | 99 | 132 | 70 | Rc 1/4 | DG/DK/DA |
| 3330-32T2-09 | 33.0 | 32 | 55 | 99 | 132 | 60 | Rc 1/4 | D148-149 |
| 3330-40T2-09 | 33.0 | 40 | 55 | 99 | 132 | 70 | Rc 1/4 | |
| 3340-32T2-11 | 34.0 | 32 | 55 | 102 | 135 | 60 | Rc 1/4 | SPMG 11... |
| 3340-40T2-11 | 34.0 | 40 | 55 | 102 | 135 | 70 | Rc 1/4 | DG/DK/DA |
| 3350-32T2-11 | 35.0 | 32 | 55 | 105 | 139 | 60 | Rc 1/4 | D148-149 |
| 3350-40T2-11 | 35.0 | 40 | 55 | 105 | 139 | 70 | Rc 1/4 | |
| 3360-32T2-11 | 36.0 | 32 | 55 | 108 | 143 | 60 | Rc 1/4 | |
| 3360-40T2-11 | 36.0 | 40 | 55 | 108 | 143 | 70 | Rc 1/4 | |
| 3370-32T2-11 | 37.0 | 32 | 55 | 111 | 147 | 60 | Rc 1/4 | |
| 3370-40T2-11 | 37.0 | 40 | 55 | 111 | 147 | 70 | Rc 1/4 | |
| 3375-32T2-11 | 37.5 | 32 | 55 | 114 | 151 | 60 | Rc 1/4 | |
| 3375-40T2-11 | 37.5 | 40 | 55 | 114 | 151 | 70 | Rc 1/4 | |
| 3380-32T2-11 | 38.0 | 32 | 55 | 114 | 151 | 60 | Rc 1/4 | |
| 3380-40T2-11 | 38.0 | 40 | 55 | 114 | 151 | 70 | Rc 1/4 | |
| 3390-32T2-11 | 39.0 | 32 | 55 | 117 | 154 | 60 | Rc 1/4 | |
| 3390-40T2-11 | 39.0 | 40 | 55 | 117 | 154 | 70 | Rc 1/4 | |
| 3400-32T2-11 | 40.0 | 32 | 60 | 120 | 158 | 60 | Rc 1/4 | |
| 3400-40T2-11 | 40.0 | 40 | 60 | 120 | 158 | 70 | Rc 1/4 | |
| 3405-40T2-11 | 40.5 | 40 | 60 | 123 | 162 | 70 | Rc 1/4 | |
| 3410-40T2-11 | 41.0 | 40 | 60 | 123 | 162 | 70 | Rc 1/4 |
