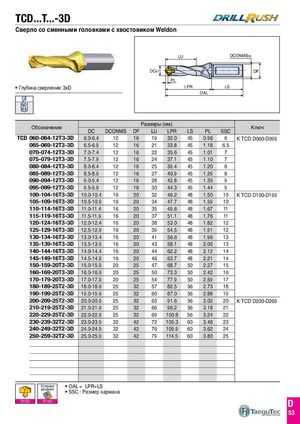

Каталог TaeguTec токарные инструменты 2020 - 2021 - страница 642

TCD...T...-3D Сверло со сменными головками с хвостовиком Weldon LU DCONMSh6 DCk7 DF PL • Глубина сверления: 3xD LPR LS OAL Обозначение Размеры (мм)DCDCONMSDFLULPRLS PL SSC Ключ TCD 060-064-12T3-3D 6.0-6.4 12 16 19 32.0 45 0.96 6 K TCD D060-D099 065-069-12T3-3D 6.5-6.9 12 16 21 33.8 45 1.18 6.5 070-074-12T3-3D 7.0-7.4 12 16 22 35.6 45 1.01 7 075-079-12T3-3D 7.5-7.9 12 16 24 37.1 45 1.10 7 080-084-12T3-3D 8.0-8.4 12 16 25 39.4 45 1.20 8 085-089-12T3-3D 8.5-8.9 12 16 27 40.9 45 1.29 8 090-094-12T3-3D 9.0-9.4 12 16 28 42.8 45 1.35 9 095-099-12T3-3D 9.5-9.9 12 16 30 44.3 45 1.44 9 100-104-16T3-3D 10.0-10.4 16 20 32 46.2 48 1.50 10 K TCD D100-D199 105-109-16T3-3D 10.5-10.9 16 20 34 47.7 48 1.59 10 110-114-16T3-3D 11.0-11.4 16 20 35 49.6 48 1.67 11 115-119-16T3-3D 11.5-11.9 16 20 37 51.1 48 1.76 11 120-124-16T3-3D 12.0-12.4 16 20 38 53.0 48 1.82 12 125-129-16T3-3D 12.5-12.9 16 20 39 54.5 48 1.91 12 130-134-16T3-3D 13.0-13.4 16 20 41 56.6 48 1.96 13 135-139-16T3-3D 13.5-13.9 16 20 43 58.1 48 2.05 13 140-144-16T3-3D 14.0-14.4 16 20 44 62.2 48 2.12 14 145-149-16T3-3D 14.5-14.9 16 20 46 63.7 48 2.21 14 150-159-20T3-3D 15.0-15.9 20 25 47 68.7 50 2.27 15 160-169-20T3-3D 16.0-16.9 20 25 50 73.3 50 2.42 16 170-179-20T3-3D 17.0-17.9 20 25 54 77.9 50 2.59 17 180-189-25T2-3D 18.0-18.9 25 32 57 82.5 56 2.73 18 190-199-25T2-3D 19.0-19.9 25 32 60 87.0 56 2.88 19 200-209-25T2-3D 20.0-20.9 25 32 63 91.6 56 3.02 20 K TCD D200-D269 210-219-25T2-3D 21.0-21.9 25 32 66 96.2 56 3.18 21 220-229-25T2-3D 22.0-22.9 25 32 69 100.8 56 3.24 22 230-239-32T2-3D 23.0-23.9 32 42 72 105.3 60 3.46 23 240-249-32T2-3D 24.0-24.9 32 42 76 109.9 60 3.62 24 250-259-32T2-3D 25.0-25.9 32 42 79 114.5 60 3.80 25 Уреслзаонвиияя • OAL = LPR+LS• SSC : Размер кармана D150 D190 D 53
