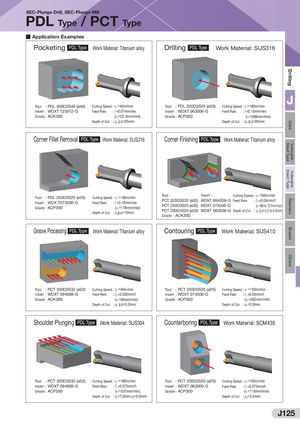

OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling SEC-Plunge Drill, SEC-Plunge Mill PDL Type / PCT Type ■ Application Examples Pocketing PDL Type Work Material: Titanium alloy Drilling PDL Type Work Material: SUS316 J Tool : PDL 400D2S40 (ø40) Cutting Speed : vc =40m/min Tool : PDL 200D3S25 (ø20) Cutting Speed : vc=180m/min Insert : WDXT 125012-G Feed Rate : f =0.07mm/rev Insert : WDXT 063006-G Feed Rate : f =0.10mm/rev Grade : ACK300 ( vf =22.3mm/min) Grade : ACP300 ( vf =286mm/min) Depth of Cut : ae (pf)=25mm Depth of Cut : ae (pf)=20mm Corner Fillet Removal PDL Type Work Material: SUS316 Corner Finishing PDL Type Work Material: Titanium alloy Tool : PDL 250D2S25 (ø25) Cutting Speed : vc =140m/minInsert: WDXT073506-GFeed Rate:  f  =0.10mm/revTool :Insert :Cutting Speed : vc =50m/minPCT 320D3S32 (ø32)WDXT 094008-GFeed Rate: fz =0.04mm/t Grade : ACP300 ( vf =178mm/min)Depth of Cut: ae(pf)=15mmPCT 250D3S25 (ø25)WDXT 073506-G ( vf =80 to 127mm/min)PCT 200D3S20 (ø20)WDXT 063006-GDepth of Cut: ae (pf)=3.2 to 6.5mmGrade : ACK300 Groove Processing PDL Type Work Material: Titanium alloy Contouring PDL Type Work Material: SUS410 Tool : PCT 320D5S32 (ø32) Cutting Speed : vc =40m/min Tool : PCT 250D5S25 (ø25) Cutting Speed : vc =150m/min Insert : WDXT 094008-G Feed Rate :  f z =0.035mm/t Insert : WDXT 073506-G Feed Rate :  f z =0.05mm/t Grade : ACK300 ( vf =56mm/min) Grade : ACP300 ( vf =382mm/min) Depth of Cut : ae (pf)=5.0mm Depth of Cut : ae=3.0mm Shoulder Plunging PDL Type Work Material: SUS304 Counterboring PDL Type Work Material: SCM435 Tool : PCT 320D3S32 (ø32) Cutting Speed : vc =180m/min Tool : PCT 200D5S20 (ø20) Cutting Speed : vc=150m/min Insert : WDXT 094008-G Feed Rate :  fz =0.075mm/t Insert : WDXT 063006-G Feed Rate :  fz =0.075mm/t Grade : ACP300 ( vf =537mm/min) Grade : ACP300 ( vf =716mm/min) Depth of Cut : ae=7.0mm pf=5.0mm Depth of Cut :  a e=3.5mm J125
