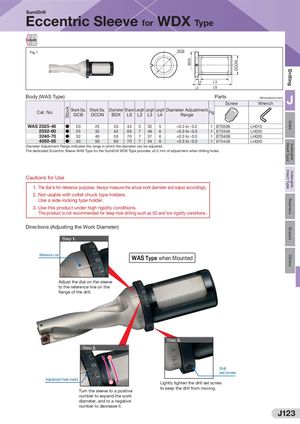

Stock BDX DCON OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling SumiDrill Eccentric Sleeve for WDX Type Indexable Fig 1 DCB L4 L3 L2 LS Body (WAS Type) PartsScrew Dimensions (mm)WrenchJ Cat. No. Shank Dia.DCBShank Dia.DCONDiameter BDX Shank LS Length L2 Length L3 Length L4 Diameter Adjustment Range Fig WAS 2025-48 ● 20 25 33 43 5 32 5 +0.3 to -0.2 1 BT0306 LH015 WAS 2532-60 ● 25 32 42 60 7 46 6 +0.3 to -0.3 1 BT0406 LH020 WAS 3240-70 ● 32 40 55 70 7 57 6 +0.3 to -0.3 1 BT0408 LH020 WAS 4050-85 ● 40 50 60 70 7 54 6 +0.3 to -0.3 1 BT0408 LH020 Diameter Adjustment Range indicates the range in which the diameter can be adjusted. The dedicated Eccentric Sleeve WAS Type for the SumiDrill WDX Type provides ±0.3 mm of adjustment when drilling holes. Cautions for Use 1. The dial is for reference purposes. Always measure the actual work diameter and adjust accordingly. 2. Not usable with collet chuck type holders. Use a side-locking type holder. 3. Use this product under high rigidity conditions. This product is not recommended for deep hole drilling such as 5D and low rigidity conditions. Directions (Adjusting the Work Diameter) Step 1. Reference Line WAS Type when Mounted Adjust the dial on the sleeve to the reference line on the ange of the drill. Step 3. Step 2. ＋ Drill set screw Adjustment hash marks − Lightly tighten the drill set screw Turn the sleeve to a positive to keep the drill from moving. number to expand the work diameter, and to a negative number to decrease it. J123
