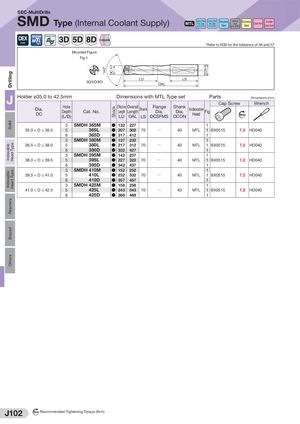

DrillingSolidIndexableIndexableHead TypeInsert TypeReamersBrazedOthers 140° DC h7Stock DCON h6 SEC-MultiDrills SMD Type (Internal Coolant Supply) MTL Carbon Steel/Alloy Steelup to 0.28%Carbon Steel/Alloy Steelfrom 0.29%TemperedSteelHardenedSteelup to 45HRCStainlessSteelCast IronDuctileCast Iron Indexable head Coolant Hole Indexable Coat Type *Refer to N38 for the tolerance of h6 and h7 Steel Mounted Figure Fig 1 LU LS 3D/5D/8D OAL J Holder ø35.0 to 42.5mm Dimensions with MTL Type set Parts Dimensions (mm)Cap ScrewWrench Dia.DC HoleDepth Cat. No.(L/D) Effective Length Overall Length Shank FlangeDia.LUOALLSDCSFMSShankDia.DCONIndexable Head Fig Nm 3 SMDH 365M ● 132 227 1 35.0 < D ≤ 36.5 5 SMDH 365L ● 207 302 70 Q 40 MTL 1 BX0515 7.2 HD040 8 SMDH 365D ● 317 412 1 3 SMDH 380M ● 137 232 1 36.5 < D ≤ 38.0 5 SMDH 380L ● 217 312 70 Q 40 MTL 1 BX0515 7.2 HD040 8 SMDH 380D ● 332 427 1 3 SMDH 395M ● 142 237 1 38.0 < D ≤ 39.5 5 SMDH 395L ● 227 322 70 Q 40 MTL 1 BX0515 7.2 HD040 8 SMDH 395D ● 342 437 1 3 SMDH 410M ● 152 252 1 39.5 < D ≤ 41.0 5 SMDH 410L ● 232 332 70 Q 40 MTL 1 BX0515 7.2 HD040 8 SMDH 410D ● 357 457 1 3 SMDH 425M ● 158 258 1 41.0 < D ≤ 42.5 5 SMDH 425L ● 243 343 70 Q 40 MTL 1 BX0515 7.2 HD040 8 SMDH 425D ● 368 468 1 J102 N m Recommended Tightening Torque (N·m)
