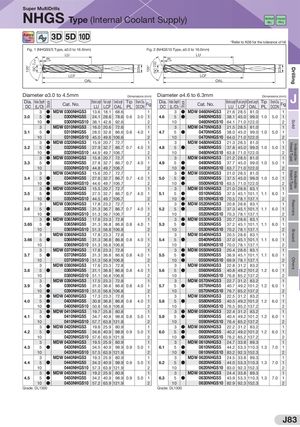

Общий каталог Sumitomo 2019 - 2020 - страница 943

135° DC -0.010 0 Stock DCON h6 135° DC -0.020 -0.010 Stock DCON h6 OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling Super MultiDrills NHGS Type (Internal Coolant Supply) Aluminum CopperAlloyAlloy Aurora Coolant Hole Coat *Refer to N38 for the tolerance of h6 Steel Fig. 1 (NHGS3/5 Type, ø3.0 to 16.0mm) Fig. 2 (NHGS10 Type, ø3.0 to 16.0mm) LU LU PL PL LCF LCF OAL OAL Diameter ø3.0 to 4.5mmDia.Hole DepthDC(L/D)Cat. No. Dimensions (mm) Diameter ø4.6 to 6.3mmEf ective LengthFlute LengthLULCFOveral LengthOALTipPLShank Dia. DCON FigDia.Hole DepthDC(L/D)Cat. No.Dimensions (mm)EfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON FigJ 3 ● MDW 0300NHGS3 13.6 18.1 68.6 1 3 ● MDW 0460NHGS3 21.6 28.5 81.0 1 3.0 5 ● MDW 0300NHGS5 24.1 28.6 78.6 0.6 3.0 1 4.6 5 ● MDW 0460NHGS5 38.1 45.0 99.0 1.0 5.0 1 10 ● MDW 0300NHGS10 38.1 42.6 92.6 2 10 MDW 0460NHGS10 64.1 71.0 122.0 2 3 MDW 0310NHGS3 16.0 20.6 72.6 1 3 MDW 0470NHGS3 21.5 28.5 81.0 1 3.1 5 ● MDW 0310NHGS5 28.0 32.6 86.6 0.6 4.0 1 4.7 5 ● MDW 0470NHGS5 38.0 45.0 99.0 1.0 5.0 1 10 MDW 0310NHGS10 45.0 49.6 106.6 2 10 MDW 0470NHGS10 64.0 71.0 122.0 2 3 ● MDW 0320NHGS3 15.9 20.7 72.7 1 3 MDW 0480NHGS3 21.3 28.5 81.0 1 3.2 5 ● MDW 0320NHGS5 27.9 32.7 86.7 0.7 4.0 1 4.8 5 ● MDW 0480NHGS5 37.8 45.0 99.0 1.0 5.0 1 10 ● MDW 0320NHGS10 44.9 49.7 106.7 2 10 MDW 0480NHGS10 63.8 71.0 122.0 2 3 ● MDW 0330NHGS3 15.8 20.7 72.7 1 3 MDW 0490NHGS3 21.2 28.5 81.0 1 3.3 5 ● MDW 0330NHGS5 27.8 32.7 86.7 0.7 4.0 1 4.9 5 ● MDW 0490NHGS5 37.7 45.0 99.0 1.0 5.0 1 10 MDW 0330NHGS10 44.8 49.7 106.7 2 10 ● MDW 0490NHGS10 63.7 71.0 122.0 2 3 MDW 0340NHGS3 15.6 20.7 72.7 1 3 ● MDW 0500NHGS3 21.0 28.5 81.0 1 3.4 5 ● MDW 0340NHGS5 27.6 32.7 86.7 0.7 4.0 1 5.0 5 ● MDW 0500NHGS5 37.5 45.0 99.0 1.0 5.0 1 10 ● MDW 0340NHGS10 44.6 49.7 106.7 2 10 ● MDW 0500NHGS10 63.5 71.0 122.0 2 3 ● MDW 0350NHGS3 15.5 20.7 72.7 1 3 MDW 0510NHGS3 21.0 28.6 83.1 1 3.5 5 ● MDW 0350NHGS5 27.5 32.7 86.7 0.7 4.0 1 5.1 5 ● MDW 0510NHGS5 37.5 45.1 101.1 1.1 6.0 1 10 ● MDW 0350NHGS10 44.5 49.7 106.7 2 10 ● MDW 0510NHGS10 70.5 78.1 137.1 2 3 MDW 0360NHGS3 17.8 23.2 72.7 1 3 ● MDW 0520NHGS3 20.8 28.6 83.1 1 3.6 5 ● MDW 0360NHGS5 31.3 36.7 86.7 0.7 4.0 1 5.2 5 ● MDW 0520NHGS5 37.3 45.1 101.1 1.1 6.0 1 10 ● MDW 0360NHGS10 51.3 56.7 106.7 2 10 MDW 0520NHGS10 70.3 78.1 137.1 2 3 ● MDW 0365NHGS3 17.8 23.3 72.8 1 3 ● MDW 0530NHGS3 20.7 28.6 83.1 1 3.65 5 ● MDW 0365NHGS5 31.3 36.8 86.8 0.8 4.0 1 5.3 5 ● MDW 0530NHGS5 37.2 45.1 101.1 1.1 6.0 1 10 MDW 0365NHGS10 51.3 56.8 106.8 2 10 MDW 0530NHGS10 70.2 78.1 137.1 2 3 MDW 0366NHGS3 17.8 23.3 72.8 1 3 MDW 0540NHGS3 20.5 28.6 83.1 1 3.66 5 ● MDW 0366NHGS5 31.3 36.8 86.8 0.8 4.0 1 5.4 5 ● MDW 0540NHGS5 37.0 45.1 101.1 1.1 6.0 1 10 MDW 0366NHGS10 51.3 56.8 106.8 2 10 MDW 0540NHGS10 70.0 78.1 137.1 2 3 MDW 0370NHGS3 17.8 23.3 72.8 1 3 ● MDW 0550NHGS3 20.4 28.6 83.1 1 3.7 5 ● MDW 0370NHGS5 31.3 36.8 86.8 0.8 4.0 1 5.5 5 ● MDW 0550NHGS5 36.9 45.1 101.1 1.1 6.0 1 10 MDW 0370NHGS10 51.3 56.8 106.8 2 10 ● MDW 0550NHGS10 69.9 78.1 137.1 2 3 MDW 0380NHGS3 17.6 23.3 72.8 1 3 MDW 0560NHGS3 22.8 31.2 83.2 1 3.8 5 ● MDW 0380NHGS5 31.1 36.8 86.8 0.8 4.0 1 5.6 5 ● MDW 0560NHGS5 40.8 49.2 101.2 1.2 6.0 1 10 MDW 0380NHGS10 51.1 56.8 106.8 2 10 MDW 0560NHGS10 76.8 85.2 137.2 2 3 MDW 0390NHGS3 17.5 23.3 72.8 1 3 MDW 0570NHGS3 22.7 31.2 83.2 1 3.9 5 ● MDW 0390NHGS5 31.0 36.8 86.8 0.8 4.0 1 5.7 5 ● MDW 0570NHGS5 40.7 49.2 101.2 1.2 6.0 1 10 ● MDW 0390NHGS10 51.0 56.8 106.8 2 10 MDW 0570NHGS10 76.7 85.2 137.2 2 3 ● MDW 0400NHGS3 17.3 23.3 72.8 1 3 MDW 0580NHGS3 22.5 31.2 83.2 1 4.0 5 ● MDW 0400NHGS5 30.8 36.8 86.8 0.8 4.0 1 5.8 5 ● MDW 0580NHGS5 40.5 49.2 101.2 1.2 6.0 1 10 ● MDW 0400NHGS10 50.8 56.8 106.8 2 10 MDW 0580NHGS10 76.5 85.2 137.2 2 3 ● MDW 0410NHGS3 19.7 25.8 80.8 1 3 ● MDW 0590NHGS3 22.4 31.2 83.2 1 4.1 5 ● MDW 0410NHGS5 34.7 40.8 98.8 0.8 5.0 1 5.9 5 ● MDW 0590NHGS5 40.4 49.2 101.2 1.2 6.0 1 10 MDW 0410NHGS10 57.7 63.8 121.8 2 10 MDW 0590NHGS10 76.4 85.2 137.2 2 3 ● MDW 0420NHGS3 19.6 25.9 80.9 1 3 ● MDW 0600NHGS3 22.2 31.2 83.2 1 4.2 5 ● MDW 0420NHGS5 34.6 40.9 98.9 0.9 5.0 1 6.0 5 ● MDW 0600NHGS5 40.2 49.2 101.2 1.2 6.0 1 10 MDW 0420NHGS10 57.6 63.9 121.9 2 10 ● MDW 0600NHGS10 76.2 85.2 137.2 2 3 MDW 0430NHGS3 19.5 25.9 80.9 1 3 MDW 0610NHGS3 24.7 33.8 89.3 1 4.3 5 ● MDW 0430NHGS5 34.5 40.9 98.9 0.9 5.0 1 6.1 5 ● MDW 0610NHGS5 44.2 53.3 110.3 1.3 7.0 1 10 MDW 0430NHGS10 57.5 63.9 121.9 2 10 ● MDW 0610NHGS10 83.2 92.3 152.3 2 3 MDW 0440NHGS3 19.3 25.9 80.9 1 3 MDW 0620NHGS3 24.5 33.8 89.3 1 4.4 5 ● MDW 0440NHGS5 34.3 40.9 98.9 0.9 5.0 1 6.2 5 ● MDW 0620NHGS5 44.0 53.3 110.3 1.3 7.0 1 10 MDW 0440NHGS10 57.3 63.9 121.9 2 10 MDW 0620NHGS10 83.0 92.3 152.3 2 3 ● MDW 0450NHGS3 19.2 25.9 80.9 1 3 MDW 0630NHGS3 24.4 33.8 89.3 1 4.5 5 ● MDW 0450NHGS5 34.2 40.9 98.9 0.9 5.0 1 6.3 5 ● MDW 0630NHGS5 43.9 53.3 110.3 1.3 7.0 1 10 ● MDW 0450NHGS10 57.2 63.9 121.9 2 10 MDW 0630NHGS10 82.9 92.3 152.3 2 Grade: DL1300 Grade: DL1300 J83
