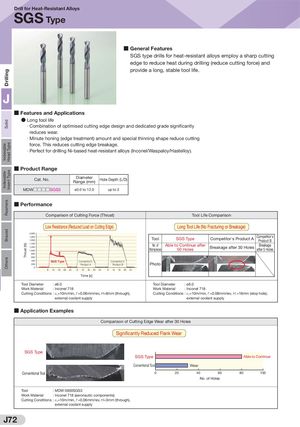

DrillingSolidIndexableIndexableHead TypeInsert TypeReamersBrazedOthers Thrust (N) Drill for Heat-Resistant Alloys SGS Type ■ General Features SGS type drills for heat-resistant alloys employ a sharp cutting edge to reduce heat during drilling (reduce cutting force) and provide a long, stable tool life. J ■ Features and Applications ● Long tool life · Combination of optimised cutting edge design and dedicated grade significantly reduces wear. · Minute honing (edge treatment) amount and special thinning shape reduce cutting force. This reduces cutting edge breakage. · Perfect for drilling Ni-based heat-resistant alloys (Inconel/Waspaloy/Hastelloy). ■ Product Range Cat. No. DiameterRange (mm) Hole Depth (L/D) MDW□□□□SGS3 ø3.0 to 12.0 up to 3 ■ Performance Comparison of Cutting Force (Thrust) Tool Life Comparison Low Resistance (Reduced Load on Cutting Edge) Long Tool Life (No Fracturing or Breakage) 2,000 1,8001,600 Tool SGS Type Competitor's Product A Competitor'sProduct B 1,4001,2001,000 No. ofWorkpiecesAble to Continue after50 HolesBreakage after 30 HolesBreakageafter 5 Holes 800 600 400 SGS Type Competitor's Competitor's 200 Product A Product B Photo 0 8 12 16 20 24 8 12 16 20 24 8 12 16 20 24 Time [s] Tool Diameter : ø6.0 Tool Diameter : ø6.0 Work Material : Inconel 718 Work Material : Inconel 718 Cutting Conditions : vc=10m/min, f =0.08mm/rev, H=8mm (through), Cutting Conditions : vc=10m/min, f =0.08mm/rev, H =16mm (stop hole), external coolant supply external coolant supply ■ Application Examples Comparison of Cutting Edge Wear after 30 Holes Significantly Reduced Flank Wear SGS Type SGS Type Able to Continue Conventional Tool Wear Conventional Tool 0 20 40 60 80 100 No. of Holes Tool : MDW 0600SGS3 Work Material : Inconel 718 (aeronautic components) Cutting Conditions : vc=10m/min, f =0.06mm/rev, H=3mm (through), external coolant supply J72
