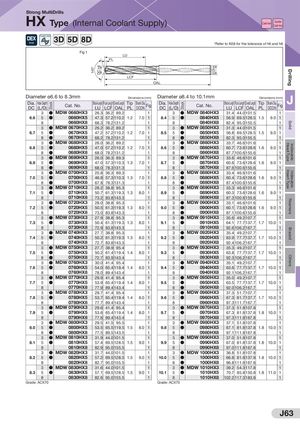

Общий каталог Sumitomo 2019 - 2020 - страница 923

Stock 140° DC h8 Stock DCON h6 OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling Strong MultiDrills HX Type (Internal Coolant Supply) Cast Iron DuctileCast Iron Coolant Hole Coat *Refer to N38 for the tolerance of h6 and h8 Steel Fig 1 LU PL LCF OAL Diameter ø6.6 to 8.3mmDia.Hole DepthDC(L/D)Cat. No. Dimensions (mm) Diameter ø8.4 to 10.1mmEfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON FigDia.Hole DepthDC(L/D)Cat. No.Dimensions (mm)EfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON FigJ 3 ● MDW 0660HX3 26.3 36.2 89.2 1 3 ● MDW 0840HX3 31.4 44.0 101.5 1 6.6 5 ● MDW 0660HX5 47.3 57.2 110.2 1.2 7.0 1 8.4 5 ● MDW 0840HX5 56.9 69.5 128.5 1.5 9.0 1 8 MDW 0660HX8 68.3 78.2 131.2 1 8 MDW 0840HX8 82.4 95.0 155.5 1 3 ● MDW 0670HX3 26.2 36.2 89.2 1 3 ● MDW 0850HX3 31.3 44.0 101.5 1 6.7 5 ● MDW 0670HX5 47.2 57.2 110.2 1.2 7.0 1 8.5 5 ● MDW 0850HX5 56.8 69.5 128.5 1.5 9.0 1 8 ● MDW 0670HX8 68.2 78.2 131.2 1 8 ● MDW 0850HX8 82.3 95.0 155.5 1 3 ● MDW 0680HX3 26.0 36.2 89.2 1 3 ● MDW 0860HX3 33.7 46.6 101.6 1 6.8 5 ● MDW 0680HX5 47.0 57.2 110.2 1.2 7.0 1 8.6 5 ● MDW 0860HX5 60.7 73.6 128.6 1.6 9.0 1 8 ● MDW 0680HX8 68.0 78.2 131.2 1 8 MDW 0860HX8 87.7 100.6 155.6 1 3 ● MDW 0690HX3 26.0 36.3 89.3 1 3 ● MDW 0870HX3 33.6 46.6 101.6 1 6.9 5 ● MDW 0690HX5 47.0 57.3 110.3 1.3 7.0 1 8.7 5 ● MDW 0870HX5 60.6 73.6 128.6 1.6 9.0 1 8 ● MDW 0690HX8 68.0 78.3 131.3 1 8 MDW 0870HX8 87.6 100.6 155.6 1 3 ● MDW 0700HX3 25.8 36.3 89.3 1 3 ● MDW 0880HX3 33.4 46.6 101.6 1 7.0 5 ● MDW 0700HX5 46.8 57.3 110.3 1.3 7.0 1 8.8 5 ● MDW 0880HX5 60.4 73.6 128.6 1.6 9.0 1 8 ● MDW 0700HX8 67.8 78.3 131.3 1 8 ● MDW 0880HX8 87.4 100.6 155.6 1 3 ● MDW 0710HX3 28.2 38.8 95.3 1 3 ● MDW 0890HX3 33.3 46.6 101.6 1 7.1 5 ● MDW 0710HX5 50.7 61.3 119.3 1.3 8.0 1 8.9 5 ● MDW 0890HX5 60.3 73.6 128.6 1.6 9.0 1 8 MDW 0710HX8 73.2 83.8 143.3 1 8 MDW 0890HX8 87.3 100.6 155.6 1 3 ● MDW 0720HX3 28.0 38.8 95.3 1 3 ● MDW 0900HX3 33.1 46.6 101.6 1 7.2 5 ● MDW 0720HX5 50.5 61.3 119.3 1.3 8.0 1 9.0 5 ● MDW 0900HX5 60.1 73.6 128.6 1.6 9.0 1 8 MDW 0720HX8 73.0 83.8 143.3 1 8 ● MDW 0900HX8 87.1 100.6 155.6 1 3 ● MDW 0730HX3 27.9 38.8 95.3 1 3 ● MDW 0910HX3 35.6 49.2 107.7 1 7.3 5 ● MDW 0730HX5 50.4 61.3 119.3 1.3 8.0 1 9.1 5 ● MDW 0910HX5 64.1 77.7 137.7 1.7 10.0 1 8 MDW 0730HX8 72.9 83.8 143.3 1 8 MDW 0910HX8 92.6 106.2 167.7 1 3 ● MDW 0740HX3 27.7 38.8 95.3 1 3 ● MDW 0920HX3 35.4 49.2 107.7 1 7.4 5 ● MDW 0740HX5 50.2 61.3 119.3 1.3 8.0 1 9.2 5 ● MDW 0920HX5 63.9 77.7 137.7 1.7 10.0 1 8 MDW 0740HX8 72.7 83.8 143.3 1 8 MDW 0920HX8 92.4 106.2 167.7 1 3 ● MDW 0750HX3 27.7 38.9 95.4 1 3 ● MDW 0930HX3 35.3 49.2 107.7 1 7.5 5 ● MDW 0750HX5 50.2 61.4 119.4 1.4 8.0 1 9.3 5 ● MDW 0930HX5 63.8 77.7 137.7 1.7 10.0 1 8 ● MDW 0750HX8 72.7 83.9 143.4 1 8 MDW 0930HX8 92.3 106.2 167.7 1 3 ● MDW 0760HX3 30.0 41.4 95.4 1 3 ● MDW 0940HX3 35.1 49.2 107.7 1 7.6 5 ● MDW 0760HX5 54.0 65.4 119.4 1.4 8.0 1 9.4 5 ● MDW 0940HX5 63.6 77.7 137.7 1.7 10.0 1 8 MDW 0760HX8 78.0 89.4 143.4 1 8 MDW 0940HX8 92.1 106.2 167.7 1 3 ● MDW 0770HX3 29.9 41.4 95.4 1 3 ● MDW 0950HX3 35.0 49.2 107.7 1 7.7 5 ● MDW 0770HX5 53.9 65.4 119.4 1.4 8.0 1 9.5 5 ● MDW 0950HX5 63.5 77.7 137.7 1.7 10.0 1 8 MDW 0770HX8 77.9 89.4 143.4 1 8 ● MDW 0950HX8 92.0 106.2 167.7 1 3 ● MDW 0780HX3 29.7 41.4 95.4 1 3 ● MDW 0960HX3 37.3 51.7 107.7 1 7.8 5 ● MDW 0780HX5 53.7 65.4 119.4 1.4 8.0 1 9.6 5 ● MDW 0960HX5 67.3 81.7 137.7 1.7 10.0 1 8 MDW 0780HX8 77.7 89.4 143.4 1 8 MDW 0960HX8 97.3 111.7 167.7 1 3 ● MDW 0790HX3 29.6 41.4 95.4 1 3 ● MDW 0970HX3 37.3 51.8 107.8 1 7.9 5 ● MDW 0790HX5 53.6 65.4 119.4 1.4 8.0 1 9.7 5 ● MDW 0970HX5 67.3 81.8 137.8 1.8 10.0 1 8 MDW 0790HX8 77.6 89.4 143.4 1 8 MDW 0970HX8 97.3 111.8 167.8 1 3 ● MDW 0800HX3 29.5 41.5 95.5 1 3 ● MDW 0980HX3 37.1 51.8 107.8 1 8.0 5 ● MDW 0800HX5 53.5 65.5 119.5 1.5 8.0 1 9.8 5 ● MDW 0980HX5 67.1 81.8 137.8 1.8 10.0 1 8 ● MDW 0800HX8 77.5 89.5 143.5 1 8 MDW 0980HX8 97.1 111.8 167.8 1 3 ● MDW 0810HX3 31.9 44.0 101.5 1 3 ● MDW 0990HX3 37.0 51.8 107.8 1 8.1 5 ● MDW 0810HX5 57.4 69.5 128.5 1.5 9.0 1 9.9 5 ● MDW 0990HX5 67.0 81.8 137.8 1.8 10.0 1 8 MDW 0810HX8 82.9 95.0 155.5 1 8 MDW 0990HX8 97.0 111.8 167.8 1 3 ● MDW 0820HX3 31.7 44.0 101.5 1 3 ● MDW 1000HX3 36.8 51.8 107.8 1 8.2 5 ● MDW 0820HX5 57.2 69.5 128.5 1.5 9.0 1 10.0 5 ● MDW 1000HX5 66.8 81.8 137.8 1.8 10.0 1 8 MDW 0820HX8 82.7 95.0 155.5 1 8 ● MDW 1000HX8 96.8 111.8 167.8 1 3 ● MDW 0830HX3 31.6 44.0 101.5 1 3 ● MDW 1010HX3 39.2 54.3 117.8 1 8.3 5 ● MDW 0830HX5 57.1 69.5 128.5 1.5 9.0 1 10.1 5 ● MDW 1010HX5 70.7 85.8 150.8 1.8 11.0 1 8 MDW 0830HX8 82.6 95.0 155.5 1 8 MDW 1010HX8 102.2 117.3 183.8 1 Grade: ACX70 Grade: ACX70 J63
