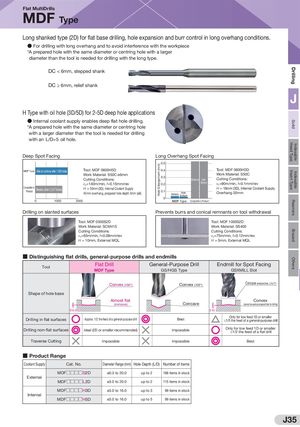

Hole Enlargement (mm) OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling Flat MultiDrills MDF Type Long shanked type (2D) for flat base drilling, hole expansion and burr control in long overhang conditions. ● For drilling with long overhang and to avoid interference with the workpiece *A prepared hole with the same diameter or centring hole with a larger diameter than the tool is needed for drilling with the long type. DC < 6mm, stepped shank DC ≥ 6mm, relief shank J H Type with oil hole (3D/5D) for 2-5D deep hole applications ● Internal coolant supply enables deep flat hole drilling. *A prepared hole with the same diameter or centring hole with a larger diameter than the tool is needed for drilling with an  L/D=5  oil hole. Deep Spot Facing Long Overhang Spot Facing 0.5 MDF Type Able to continue after 1,500 holes Tool: MDF 0600H5D 0.4 Tool: MDF 0600H3D Work Material: S50C ø6mm Work Material: S50C Cutting Conditions: 0.3 Entrance Hole Cutting Conditions: vc=140m/min, f=0.15mm/rev 0.2 Bottom vc=90m/min, f=0.1mm/rev Competitor'sProductBreaks after 1,247 holes H = 30mm (5D), Internal Coolant Supply45mm overhang, prepared hole depth 3mm (ø6) 0.1 Entrance Hole Bottom H = 18mm (3D), Internal Coolant SupplyOverhang 35mm 0 0 1000 2000 MDF Type Competitor's Product Drilling on slanted surfaces Prevents burrs and conical remnants on tool withdrawal Tool: MDF 0500S2D Tool: MDF 1000S2D Work Material: SCM415 Work Material: SS400 Cutting Conditions: Cutting Conditions: vc=65m/min, f=0.08mm/rev vc=75m/min, f=0.12mm/rev H = 10mm, External MQL H = 5mm, External MQL ■ Distinguishing flat drills, general-purpose drills and endmills Tool Flat Drill General-Purpose Drill Endmill for Spot Facing MDF Type GS/HGS Type GSXMILL Slot Convex (180°) Convex (135°) Concave (medium/low, 2 to 3°) Shape of hole base Almost at Convex (concave) Concave (cannot be used as prepared hole for drilling) 0 to 0.5° 2 to 3° Drilling in at surfaces Approx. 1/2 the feed of a general-purpose drill Best Only for low feed 1D or smaller≤1/5 the feed of a general-purpose drill Drilling non- at surfaces Ideal (2D or smaller recommended) Impossible Only for low feed 1D or smaller≤1/2 the feed of aat drill Traverse Cutting Impossible Impossible Best ■ Product Range Coolant Supply Cat. No. Diameter Range (mm) Hole Depth (L/D) Number of items MDF□□□□S2D ø0.3 to 20.0 up to 2 188 items in stock External MDF□□□□L2D ø3.0 to 20.0 up to 2 115 items in stock MDF□□□□H3D ø3.0 to 16.0 up to 3   99 items in stock Internal MDF□□□□H5D ø3.0 to 16.0 up to 5   99 items in stock J35
