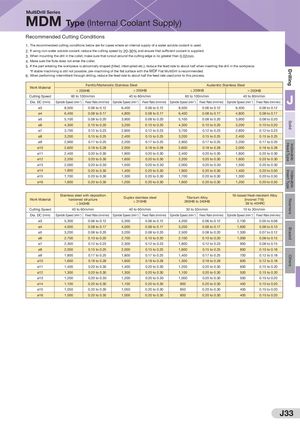

OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling MultiDrill Series MDM Type (Internal Coolant Supply) Recommended Cutting Conditions 1. The recommended cutting conditions below are for cases where an internal supply of a water soluble coolant is used. 2. If using non-water soluble coolant, reduce the cutting speed by 20-30% and ensure that sufficient coolant is supplied. 3. When mounting the drill in the collet, make sure that runout around the cutting edge is no greater than 0.02mm. 4. Make sure the flute does not enter the collet. 5. If the part entering the workpiece is abnormally shaped (tilted, interrupted etc.), reduce the feed rate to about half when inserting the drill in the workpiece. *If stable machining is still not possible, pre-machining of the flat surface with the MDF Flat MultiDrill is recommended. 6. When performing intermittent through drilling, reduce the feed rate to about half the feed rate used prior to this process. Ferritic/Martensitic Stainless Steel Austenitic Stainless Steel Work Material ≤ 200HB > 200HB ≤ 200HB > 200HB Cutting Speed 60 to 100m/min 40 to 80m/min 60 to 100m/min 40 to 80m/minDia. DC (mm)Spindle Speed (min-1)Feed Rate (mm/rev)Spindle Speed (min-1)Feed Rate (mm/rev)Spindle Speed (min-1)Feed Rate (mm/rev)Spindle Speed (min-1)Feed Rate (mm/rev)J ø3 8,500 0.06 to 0.12 6,400 0.06 to 0.12 8,500 0.06 to 0.12 6,400 0.06 to 0.12 ø4 6,400 0.08 to 0.17 4,800 0.08 to 0.17 6,400 0.08 to 0.17 4,800 0.08 to 0.17 ø5 5,100 0.08 to 0.20 3,900 0.08 to 0.20 5,100 0.08 to 0.20 3,900 0.08 to 0.20 ø6 4,300 0.10 to 0.20 3,200 0.10 to 0.20 4,300 0.10 to 0.20 3,200 0.10 to 0.20 ø7 3,700 0.12 to 0.23 2,800 0.12 to 0.23 3,700 0.12 to 0.23 2,800 0.12 to 0.23 ø8 3,200 0.15 to 0.25 2,400 0.15 to 0.25 3,200 0.15 to 0.25 2,400 0.15 to 0.25 ø9 2,900 0.17 to 0.25 2,200 0.17 to 0.25 2,900 0.17 to 0.25 2,200 0.17 to 0.25 ø10 2,600 0.18 to 0.28 2,000 0.18 to 0.28 2,600 0.18 to 0.28 2,000 0.18 to 0.28 ø11 2,400 0.20 to 0.30 1,800 0.20 to 0.30 2,400 0.20 to 0.30 1,800 0.20 to 0.30 ø12 2,200 0.20 to 0.30 1,600 0.20 to 0.30 2,200 0.20 to 0.30 1,600 0.20 to 0.30 ø13 2,000 0.20 to 0.30 1,500 0.20 to 0.30 2,000 0.20 to 0.30 1,500 0.20 to 0.30 ø14 1,900 0.20 to 0.30 1,400 0.20 to 0.30 1,900 0.20 to 0.30 1,400 0.20 to 0.30 ø15 1,700 0.20 to 0.30 1,300 0.20 to 0.30 1,700 0.20 to 0.30 1,300 0.20 to 0.30 ø16 1,600 0.20 to 0.30 1,200 0.20 to 0.30 1,600 0.20 to 0.30 1,200 0.20 to 0.30 Stainless steel with depositionWork Materialhardened structure≤ 340HBDuplex stainless steel≤ 310HBTitanium Alloy260HB to 340HB Ni-based Heat-resistant Alloy(Inconel 718)38 to 45HRC Cutting Speed 40 to 60m/min 40 to 60m/min 30 to 50m/min 10 to 30m/min Dia. DC (mm) Spindle Speed (min-1) Feed Rate (mm/rev) Spindle Speed (min-1) Feed Rate (mm/rev) Spindle Speed (min-1) Feed Rate (mm/rev) Spindle Speed (min-1) Feed Rate (mm/rev) ø3 5,300 0.06 to 0.12 5,300 0.06 to 0.12 4,200 0.06 to 0.12 2,100 0.05 to 0.08 ø4 4,000 0.08 to 0.17 4,000 0.08 to 0.17 3,200 0.08 to 0.17 1,600 0.06 to 0.10 ø5 3,200 0.08 to 0.20 3,200 0.08 to 0.20 2,500 0.08 to 0.20 1,300 0.07 to 0.12 ø6 2,700 0.10 to 0.20 2,700 0.10 to 0.20 2,100 0.10 to 0.20 1,000 0.08 to 0.15 ø7 2,300 0.12 to 0.23 2,300 0.12 to 0.23 1,800 0.12 to 0.23 900 0.08 to 0.15 ø8 2,000 0.15 to 0.25 2,000 0.15 to 0.25 1,600 0.15 to 0.25 800 0.10 to 0.18 ø9 1,800 0.17 to 0.25 1,800 0.17 to 0.25 1,400 0.17 to 0.25 700 0.12 to 0.18 ø10 1,600 0.18 to 0.28 1,600 0.18 to 0.28 1,300 0.18 to 0.28 600 0.12 to 0.18 ø11 1,400 0.20 to 0.30 1,400 0.20 to 0.30 1,200 0.20 to 0.30 600 0.15 to 0.20 ø12 1,300 0.20 to 0.30 1,300 0.20 to 0.30 1,100 0.20 to 0.30 500 0.15 to 0.20 ø13 1,200 0.20 to 0.30 1,200 0.20 to 0.30 1,000 0.20 to 0.30 500 0.15 to 0.20 ø14 1,100 0.20 to 0.30 1,100 0.20 to 0.30 900 0.20 to 0.30 450 0.15 to 0.20 ø15 1,050 0.20 to 0.30 1,050 0.20 to 0.30 850 0.20 to 0.30 400 0.15 to 0.20 ø16 1,000 0.20 to 0.30 1,000 0.20 to 0.30 800 0.20 to 0.30 400 0.15 to 0.20 J33
