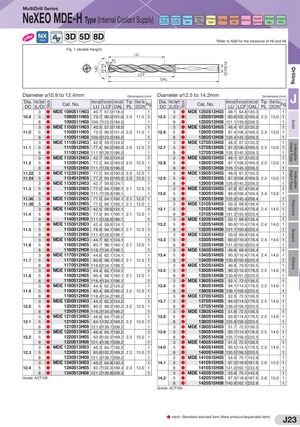

Общий каталог Sumitomo 2019 - 2020 - страница 883

Stock 140° DC h8 Stock DCON h6 OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling MultiDrill Series NeXEO MDE-H Type (Internal Coolant Supply) Carbon Steel/Alloy Steelup to 0.28%Carbon Steel/Alloy Steelfrom 0.29%TemperedSteelHardenedSteelup to 45HRCStainlessSteelTi AlloyHeat-resistantSteelCast IronDuctileCast IronAluminumAlloyCopperAlloy Coolant Hole NX Coat *Refer to N38 for the tolerance of h6 and h8 Steel Fig. 1 (double margin) LU PL LCF OAL Diameter ø10.9 to 12.4mmDia.Hole DepthDC(L/D)Cat. No. Dimensions (mm) Diameter ø12.5 to 14.2mmEfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON FigDia.Hole DepthDC(L/D)Cat. No.Dimensions (mm)EfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON FigJ 3 ● MDE 1090S11H03 40.7 57.0 118.0 1 3 ● MDE 1250S13H03 46.1 64.8 130.3 1 10.9 5 ● MDE 1090S11H05 73.7 90.0 151.0 2.0 11.0 1 12.5 5 ● MDE 1250S13H05 83.6 102.3 169.3 2.3 13.0 1 8 ● MDE 1090S11H08 106.7 123.0 184.0 1 8 ● MDE 1250S13H08 121.1 139.8 208.3 1 3 ● MDE 1100S11H03 40.5 57.0 118.0 1 3 ● MDE 1260S13H03 48.4 67.3 130.3 1 11.0 5 ● MDE 1100S11H05 73.5 90.0 151.0 2.0 11.0 1 12.6 5 ● MDE 1260S13H05 87.4 106.3 169.3 2.3 13.0 1 8 ● MDE 1100S11H08 106.5 123.0 184.0 1 8 ● MDE 1260S13H08 126.4 145.3 208.3 1 3 ● MDE 1110S12H03 42.9 59.5 124.0 1 3 ● MDE 1270S13H03 48.3 67.3 130.3 1 11.1 5 ● MDE 1110S12H05 77.4 94.0 160.0 2.0 12.0 1 12.7 5 ● MDE 1270S13H05 87.3 106.3 169.3 2.3 13.0 1 8 ● MDE 1110S12H08 111.9 128.5 196.0 1 8 ● MDE 1270S13H08 126.3 145.3 208.3 1 3 ● MDE 1120S12H03 42.7 59.5 124.0 1 3 ● MDE 1280S13H03 48.1 67.3 130.3 1 11.2 5 ● MDE 1120S12H05 77.2 94.0 160.0 2.0 12.0 1 12.8 5 ● MDE 1280S13H05 87.1 106.3 169.3 2.3 13.0 1 8 ● MDE 1120S12H08 111.7 128.5 196.0 1 8 ● MDE 1280S13H08 126.1 145.3 208.3 1 11.22 5 ● MDE 1122S12H05 77.2 94.0 160.0 2.0 12.0 1 3 ● MDE 1290S13H03 48.0 67.3 130.3 1 11.24 5 ● MDE 1124S12H05 77.2 94.0 160.0 2.0 12.0 1 12.9 5 ● MDE 1290S13H05 87.0 106.3 169.3 2.3 13.0 1 3 ● MDE 1130S12H03 42.7 59.6 124.1 1 8 ● MDE 1290S13H08 126.0 145.3 208.3 1 11.3 5 ● MDE 1130S12H05 77.2 94.1 160.1 2.1 12.0 1 3 ● MDE 1300S13H03 47.9 67.4 130.4 1 8 ● MDE 1130S12H08 111.7 128.6 196.1 1 13.0 5 ● MDE 1300S13H05 86.9 106.4 169.4 2.4 13.0 1 11.36 5 ● MDE 1136S12H05 77.0 94.1 160.1 2.1 12.0 1 8 ● MDE 1300S13H08 125.9 145.4 208.4 1 11.38 5 ● MDE 1138S12H05 77.0 94.1 160.1 2.1 12.0 1 3 ● MDE 1310S14H03 50.3 69.9 136.4 1 3 ● MDE 1140S12H03 42.5 59.6 124.1 1 13.1 5 ● MDE 1310S14H05 90.8 110.4 178.4 2.4 14.0 1 11.4 5 ● MDE 1140S12H05 77.0 94.1 160.1 2.1 12.0 1 8 ● MDE 1310S14H08 131.3 150.9 220.4 1 8 ● MDE 1140S12H08 111.5 128.6 196.1 1 3 ● MDE 1320S14H03 50.1 69.9 136.4 1 3 ● MDE 1150S12H03 42.4 59.6 124.1 1 13.2 5 ● MDE 1320S14H05 90.6 110.4 178.4 2.4 14.0 1 11.5 5 ● MDE 1150S12H05 76.9 94.1 160.1 2.1 12.0 1 8 ● MDE 1320S14H08 131.1 150.9 220.4 1 8 ● MDE 1150S12H08 111.4 128.6 196.1 1 3 ● MDE 1330S14H03 50.0 69.9 136.4 1 3 ● MDE 1160S12H03 44.7 62.1 124.1 1 13.3 5 ● MDE 1330S14H05 90.5 110.4 178.4 2.4 14.0 1 11.6 5 ● MDE 1160S12H05 80.7 98.1 160.1 2.1 12.0 1 8 ● MDE 1330S14H08 131.0 150.9 220.4 1 8 ● MDE 1160S12H08 116.7 134.1 196.1 1 3 ● MDE 1340S14H03 49.8 69.9 136.4 1 3 ● MDE 1170S12H03 44.6 62.1 124.1 1 13.4 5 ● MDE 1340S14H05 90.3 110.4 178.4 2.4 14.0 1 11.7 5 ● MDE 1170S12H05 80.6 98.1 160.1 2.1 12.0 1 8 ● MDE 1340S14H08 130.8 150.9 220.4 1 8 ● MDE 1170S12H08 116.6 134.1 196.1 1 3 ● MDE 1350S14H03 49.8 70.0 136.5 1 3 ● MDE 1180S12H03 44.4 62.1 124.1 1 13.5 5 ● MDE 1350S14H05 90.3 110.5 178.5 2.5 14.0 1 11.8 5 ● MDE 1180S12H05 80.4 98.1 160.1 2.1 12.0 1 8 ● MDE 1350S14H08 130.8 151.0 220.5 1 8 ● MDE 1180S12H08 116.4 134.1 196.1 1 3 ● MDE 1360S14H03 52.1 72.5 136.5 1 3 ● MDE 1190S12H03 44.4 62.2 124.2 1 13.6 5 ● MDE 1360S14H05 94.1 114.5 178.5 2.5 14.0 1 11.9 5 ● MDE 1190S12H05 80.4 98.2 160.2 2.2 12.0 1 8 ● MDE 1360S14H08 136.1 156.5 220.5 1 8 ● MDE 1190S12H08 116.4 134.2 196.2 1 3 ● MDE 1370S14H03 52.0 72.5 136.5 1 3 ● MDE 1200S12H03 44.2 62.2 124.2 1 13.7 5 ● MDE 1370S14H05 94.0 114.5 178.5 2.5 14.0 1 12.0 5 ● MDE 1200S12H05 80.2 98.2 160.2 2.2 12.0 1 8 ● MDE 1370S14H08 136.0 156.5 220.5 1 8 ● MDE 1200S12H08 116.2 134.2 196.2 1 3 ● MDE 1380S14H03 51.8 72.5 136.5 1 3 ● MDE 1210S13H03 46.6 64.7 130.2 1 13.8 5 ● MDE 1380S14H05 93.8 114.5 178.5 2.5 14.0 1 12.1 5 ● MDE 1210S13H05 84.1 102.2 169.2 2.2 13.0 1 8 ● MDE 1380S14H08 135.8 156.5 220.5 1 8 ● MDE 1210S13H08 121.6 139.7 208.2 1 3 ● MDE 1390S14H03 51.7 72.5 136.5 1 3 ● MDE 1220S13H03 46.4 64.7 130.2 1 13.9 5 ● MDE 1390S14H05 93.7 114.5 178.5 2.5 14.0 1 12.2 5 ● MDE 1220S13H05 83.9 102.2 169.2 2.2 13.0 1 8 ● MDE 1390S14H08 135.7 156.5 220.5 1 8 ● MDE 1220S13H08 121.4 139.7 208.2 1 3 ● MDE 1400S14H03 51.5 72.5 136.5 1 3 ● MDE 1230S13H03 46.3 64.7 130.2 1 14.0 5 ● MDE 1400S14H05 93.5 114.5 178.5 2.5 14.0 1 12.3 5 ● MDE 1230S13H05 83.8 102.2 169.2 2.2 13.0 1 8 ● MDE 1400S14H08 135.5 156.5 220.5 1 8 ● MDE 1230S13H08 121.3 139.7 208.2 1 3 ● MDE 1410S15H03 54.0 75.1 142.6 1 3 ● MDE 1240S13H03 46.2 64.8 130.3 1 14.1 5 ● MDE 1410S15H05 97.5 118.6 187.6 2.6 15.0 1 12.4 5 ● MDE 1240S13H05 83.7 102.3 169.3 2.3 13.0 1 8 ● MDE 1410S15H08 141.0 162.1 232.6 1 8 ● MDE 1240S13H08 121.2 139.8 208.3 1 3 ● MDE 1420S15H03 53.8 75.1 142.6 1 Grade: ACT100 14.2 5 ● MDE 1420S15H05 97.3 118.6 187.6 2.6 15.0 1 8 ● MDE 1420S15H08 140.8 162.1 232.6 1 Grade: ACT100 ● mark: Standard stocked item (New product/expanded item) J23
