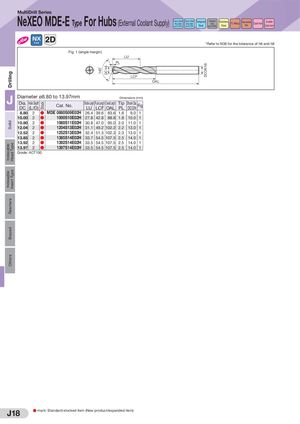

DrillingSolidIndexableIndexableHead TypeInsert TypeReamersBrazedOthers Stock 140° DC h8 DCON h6 MultiDrill Series NeXEO MDE-E Type For Hubs (External Coolant Supply) Carbon Steel/Alloy Steelup to 0.28%Carbon Steel/Alloy Steelfrom 0.29%TemperedSteelHardenedSteelup to 45HRCStainlessSteelTi AlloyHeat-resistantSteelCast IronDuctileCast Iron NX Coat *Refer to N38 for the tolerance of h6 and h8 Fig. 1 (single margin) LU PL LCF OAL J Diameter ø8.80 to 13.97mmDia.Hole DepthDC(L/D)Cat. No. Dimensions (mm)EfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON Fig 8.80 2 ● MDE 0880S09E02H 26.4 39.6 83.6 1.6 9.0 1 10.00 2 ● MDE 1000S10E02H 27.8 42.8 88.8 1.8 10.0 1 10.80 2 ● MDE 1080S11E02H 30.8 47.0 95.0 2.0 11.0 1 12.04 2 ● MDE 1204S13E02H 31.1 49.2 102.2 2.2 13.0 1 12.52 2 ● MDE 1252S13E02H 32.4 51.3 102.3 2.3 13.0 1 13.85 2 ● MDE 1385S14E02H 33.7 54.5 107.5 2.5 14.0 1 13.92 2 ● MDE 1392S14E02H 33.5 54.5 107.5 2.5 14.0 1 13.97 2 ● MDE 1397S14E02H 33.5 54.5 107.5 2.5 14.0 1 Grade: ACT100 J18 ● mark: Standard stocked item (New product/expanded item)
