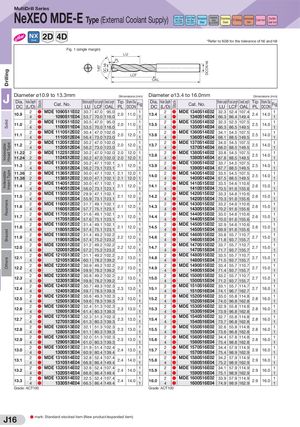

Общий каталог Sumitomo 2019 - 2020 - страница 876

DrillingSolidIndexableIndexableHead TypeInsert TypeReamersBrazedOthers Stock 140° DC h8 Stock DCON h6 MultiDrill Series NeXEO MDE-E Type (External Coolant Supply) Carbon Steel/Alloy Steelup to 0.28%Carbon Steel/Alloy Steelfrom 0.29%TemperedSteelHardenedSteelup to 45HRCStainlessSteelTi AlloyHeat-resistantSteelCast IronDuctileCast Iron NX Coat *Refer to N38 for the tolerance of h6 and h8 Fig. 1 (single margin) LU PL LCF OAL J Diameter ø10.9 to 13.3mmDia.Hole DepthDC(L/D)Cat. No. Dimensions (mm) Diameter ø13.4 to 16.0mmEfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON FigDia.Hole DepthDC(L/D)Cat. No.Dimensions (mm)EfectiveLength Flute Length Overal LengthLULCFOALTipPLShank Dia. DCON Fig 10.9 24 ● MDE 1090S11E02●MDE 1090S11E0430.753.747.095.070.0 116.0 2.0 11.0 11 13.4 24 ● MDE 1340S14E02●MDE 1340S14E04 32.366.3 52.4 107.486.4 149.4 2.4 14.0 11 11.0 24 ● MDE 1100S11E02●MDE 1100S11E0430.553.547.095.070.0 116.0 2.0 11.0 11 13.5 24 ● MDE 1350S14E02●MDE 1350S14E04 32.366.3 52.5 107.586.5 149.5 2.5 14.0 11 11.1 24 ● MDE 1110S12E02●MDE 1110S12E0430.456.447.0 102.073.0 123.0 2.0 12.0 11 13.6 24 ● MDE 1360S14E02●MDE 1360S14E04 34.168.1 54.5 107.588.5 149.5 2.5 14.0 11 11.2 24 ● MDE 1120S12E02●MDE 1120S12E0430.256.247.0 102.073.0 123.0 2.0 12.0 11 13.7 24 ● MDE 1370S14E02●MDE 1370S14E04 34.068.0 54.5 107.588.5 149.5 2.5 14.0 11 11.22 2 ● MDE 1122S12E02 30.2 47.0 102.0 2.0 12.0 111.242●MDE 1124S12E0230.247.0 102.02.012.0113.824●MDE 1380S14E02●MDE 1380S14E04 33.867.8 54.5 107.588.5 149.5 2.5 14.0 11 11.3 24 ● MDE 1130S12E02●MDE 1130S12E0430.256.247.1 102.173.1 123.1 2.1 12.0 11 13.9 24 ● MDE 1390S14E02●MDE 1390S14E04 33.767.7 54.5 107.588.5 149.5 2.5 14.0 11 11.36 2 ● MDE 1136S12E02 30.0 47.1 102.1 2.1 12.0 111.382●MDE 1138S12E0230.047.1 102.12.112.0114.024●MDE 1400S14E02●MDE 1400S14E04 33.567.5 54.5 107.588.5 149.5 2.5 14.0 11 11.4 24 ● MDE 1140S12E02●MDE 1140S12E0430.056.047.1 102.173.1 123.1 2.1 12.0 11 14.1 24 ● MDE 1410S15E02●MDE 1410S15E04 33.570.5 54.6 110.691.6 155.6 2.6 15.0 11 11.5 24 ● MDE 1150S12E02●MDE 1150S12E0429.955.947.1 102.173.1 123.1 2.1 12.0 11 14.2 24 ● MDE 1420S15E02●MDE 1420S15E04 33.370.3 54.6 110.691.6 155.6 2.6 15.0 11 11.6 24 ● MDE 1160S12E02●MDE 1160S12E0431.757.749.1 102.175.1 123.1 2.1 12.0 11 14.3 24 ● MDE 1430S15E02●MDE 1430S15E04 33.270.2 54.6 110.691.6 155.6 2.6 15.0 11 11.7 24 ● MDE 1170S12E02●MDE 1170S12E0431.657.649.1 102.175.1 123.1 2.1 12.0 11 14.4 24 ● MDE 1440S15E02●MDE 1440S15E04 33.070.0 54.6 110.691.6 155.6 2.6 15.0 11 11.8 24 ● MDE 1180S12E02●MDE 1180S12E0431.457.449.1 102.175.1 123.1 2.1 12.0 11 14.5 24 ● MDE 1450S15E02●MDE 1450S15E04 32.969.9 54.6 110.691.6 155.6 2.6 15.0 11 11.9 24 ● MDE 1190S12E02●MDE 1190S12E0431.457.449.2 102.275.2 123.2 2.2 12.0 11 14.6 24 ● MDE 1460S15E02●MDE 1460S15E04 33.871.8 55.7 110.793.7 155.7 2.7 15.0 11 12.0 24 ● MDE 1200S12E02●MDE 1200S12E0431.257.249.2 102.275.2 123.2 2.2 12.0 11 14.7 24 ● MDE 1470S15E02●MDE 1470S15E04 33.771.7 55.7 110.793.7 155.7 2.7 15.0 11 12.1 24 ● MDE 1210S13E02●MDE 1210S13E0431.160.149.2 102.278.2 139.2 2.2 13.0 11 14.8 24 ● MDE 1480S15E02●MDE 1480S15E04 33.571.5 55.7 110.793.7 155.7 2.7 15.0 11 12.2 24 ● MDE 1220S13E02●MDE 1220S13E0430.959.949.2 102.278.2 139.2 2.2 13.0 11 14.9 24 ● MDE 1490S15E02●MDE 1490S15E04 33.471.4 55.7 110.793.7 155.7 2.7 15.0 11 12.3 24 ● MDE 1230S13E02●MDE 1230S13E0430.859.849.2 102.278.2 139.2 2.2 13.0 11 15.0 24 ● MDE 1500S15E02●MDE 1500S15E04 33.271.2 55.7 110.793.7 155.7 2.7 15.0 11 12.4 24 ● MDE 1240S13E02●MDE 1240S13E0430.759.749.3 102.378.3 139.3 2.3 13.0 11 15.1 24 ● MDE 1510S16E02●MDE 1510S16E04 33.174.1 55.7 114.796.7 162.7 2.7 16.0 11 12.5 24 ● MDE 1250S13E02●MDE 1250S13E0430.659.649.3 102.378.3 139.3 2.3 13.0 11 15.2 24 ● MDE 1520S16E02●MDE 1520S16E04 33.074.0 55.8 114.896.8 162.8 2.8 16.0 11 12.6 24 ● MDE 1260S13E02●MDE 1260S13E0432.461.451.3 102.380.3 139.3 2.3 13.0 11 15.3 24 ● MDE 1530S16E02●MDE 1530S16E04 32.973.9 55.8 114.896.8 162.8 2.8 16.0 11 12.7 24 ● MDE 1270S13E02●MDE 1270S13E0432.361.351.3 102.380.3 139.3 2.3 13.0 11 15.4 24 ● MDE 1540S16E02●MDE 1540S16E04 32.773.7 55.8 114.896.8 162.8 2.8 16.0 11 12.8 24 ● MDE 1280S13E02●MDE 1280S13E0432.161.151.3 102.380.3 139.3 2.3 13.0 11 15.5 24 ● MDE 1550S16E02●MDE 1550S16E04 32.673.6 55.8 114.896.8 162.8 2.8 16.0 11 12.9 24 ● MDE 1290S13E02●MDE 1290S13E0432.061.051.3 102.380.3 139.3 2.3 13.0 11 15.6 24 ● MDE 1560S16E02●MDE 1560S16E04 34.475.4 57.8 114.898.8 162.8 2.8 16.0 11 13.0 24 ● MDE 1300S13E02●MDE 1300S13E0431.960.951.4 102.480.4 139.4 2.4 13.0 11 15.7 24 ● MDE 1570S16E02●MDE 1570S16E04 34.475.4 57.9 114.998.9 162.9 2.9 16.0 11 13.1 24 ● MDE 1310S14E02●MDE 1310S14E0432.866.852.4 107.486.4 149.4 2.4 14.0 11 15.8 24 ● MDE 1580S16E02●MDE 1580S16E04 34.275.2 57.9 114.998.9 162.9 2.9 16.0 11 13.2 24 ● MDE 1320S14E02●MDE 1320S14E0432.666.652.4 107.486.4 149.4 2.4 14.0 11 15.9 24 ● MDE 1590S16E02●MDE 1590S16E04 34.175.1 57.9 114.998.9 162.9 2.9 16.0 11 13.3 24 ● MDE 1330S14E02●MDE 1330S14E0432.566.552.4 107.486.4 149.4 2.4 14.0 11 16.0 24 ● MDE 1600S16E02●MDE 1600S16E04 33.974.9 57.9 114.998.9 162.9 2.9 16.0 11 Grade: ACT100 Grade: ACT100 J16 ● mark: Standard stocked item (New product/expanded item)
