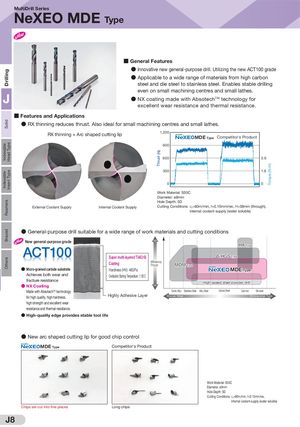

DrillingSolidIndexableIndexableHead TypeInsert TypeReamersBrazedOthers Thrust (N) Torque (N·m) MultiDrill Series NeXEO MDE Type ■ General Features ● Innovative new general-purpose drill. Utilizing the new ACT100 grade ● Applicable to a wide range of materials from high carbon steel and die steel to stainless steel. Enables stable drilling even on small machining centres and small lathes. J ● NX coating made with AbsotechTM technology for excellent wear resistance and thermal resistance. ■ Features and Applications ●RX thinning reduces thrust. Also ideal for small machining centres and small lathes. RX thinning + Arc shaped cutting lip 1,200 MDE Type Competitor's Product 900 600 3.6 300 1.8 0 0 Work Material: S50C Diameter: ø8mm Hole Depth: 5D External Coolant Supply Internal Coolant Supply Cutting Conditions: v c=80m/min, f=0.15mm/rev, H=38mm (through), internal coolant supply (water soluble) ● General-purpose drill suitable for a wide range of work materials and cutting conditions New general-purpose grade High HX Type ACT100 Super multi-layered TiAlCrSi GS/HGS Type Coating · Ef ciency· Thrust MDM Type ● Micro-grained carbide substrate Hardness (HV): 46GPa MDE Type Achieves both wear and Oxidisation Starting Temperature: 1,100°C fracture resistance High-speed steel powder drill ● NX Coating Low Made with AbsotechTM technology Exotic Alloy Stainless Steel Alloy Steel Carbon Steel Cast Iron Die steel for high quality, high hardness, Highly Adhesive Layer Sharper Edge Strong-edge Type high strength and excellent wear resistance and thermal resistance. ● High-quality edge provides stable tool life ● New arc shaped cutting lip for good chip control MDE Type Competitor's Product Work Material: S50C Diameter: ø9mm Hole Depth: 5D Cutting Conditions: v c=80m/min, f=0.15mm/rev, internal coolant supply (water soluble) Chips are cut into fine pieces Long chips J8
