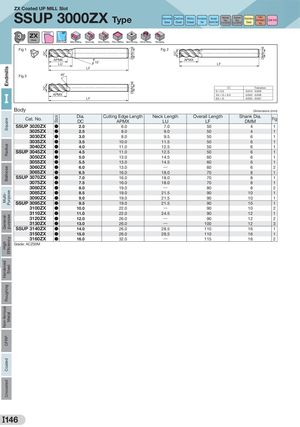

Общий каталог Sumitomo 2019 - 2020 - страница 830

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DCDC Stock DMM h6DMM h6 DC DMM h6 ZX Coated UP MILL Slot SSUP 3000ZX Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRCStainlessSteelTi Alloy /Heat ResistantAlloyCast Iron Corner Flutes Coat Helix Angle Side Milling Grooving Groove Finishing Face Milling Spot Facing Helical Milling Ramping Fig 1 Fig 2 APMX APMX LU 15˚ LF LF Fig 3 45˚ DC Tolerance D ≤ 3.0 -0.014 -0.028 I APMX LF 3.0 < D ≤ 6.0 -0.020 -0.0386.0 < D-0.025-0.047 Body Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSUP 3020ZX ● 2.0 6.0 7.0 50 4 1 SSUP 3025ZX ● 2.5 8.0 9.0 50 4 1 SSUP 3030ZX ● 3.0 8.0 9.5 50 6 1 SSUP 3035ZX ● 3.5 10.0 11.5 50 6 1 SSUP 3040ZX ● 4.0 11.0 12.5 50 6 1 SSUP 3045ZX ● 4.5 11.0 12.5 50 6 1 SSUP 3050ZX ● 5.0 13.0 14.5 60 6 1 SSUP 3055ZX ● 5.5 13.0 14.5 60 6 1 SSUP 3060ZX ● 6.0 13.0 ― 60 6 2 SSUP 3065ZX ● 6.5 16.0 18.0 70 8 1 SSUP 3070ZX ● 7.0 16.0 18.0 70 8 1 SSUP 3075ZX ● 7.5 16.0 18.0 70 8 1 SSUP 3080ZX ● 8.0 19.0 ― 80 8 2 SSUP 3085ZX ● 8.5 19.0 21.5 90 10 1 SSUP 3090ZX ● 9.0 19.0 21.5 90 10 1 SSUP 3095ZX ● 9.5 19.0 21.5 90 10 1 SSUP 3100ZX ● 10.0 22.0 ― 90 10 2 SSUP 3110ZX ● 11.0 22.0 24.5 90 12 1 SSUP 3120ZX ● 12.0 26.0 ― 90 12 2 SSUP 3130ZX ● 13.0 26.0 ― 100 12 3 SSUP 3140ZX ● 14.0 26.0 28.5 110 16 1 SSUP 3150ZX ● 15.0 26.0 28.5 110 16 1 SSUP 3160ZX ● 16.0 32.0 ― 115 16 2 Grade: ACZ50M I146
