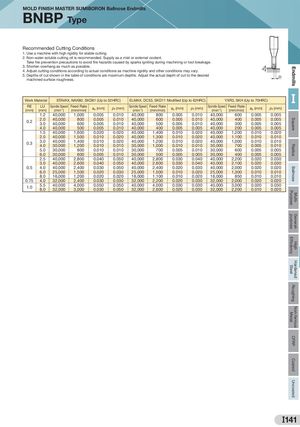

ap UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills MOLD FINISH MASTER SUMIBORON Ballnose Endmills BNBP Type Recommended Cutting Conditions 1. Use a machine with high rigidity for stable cutting. 2. ‌N on-water soluble cutting oil is recommended. Supply as a mist or external coolant. Take fire prevention precautions to avoid fire hazards caused by sparks igniting during machining or tool breakage. 3. Shorten overhang as much as possible. 4. Adjust cutting conditions according to actual conditions as machine rigidity and other conditions may vary. 5. Depths of cut shown in the table of conditions are maximum depths. Adjust the actual depth of cut to the desired pf machined surface roughness. Work Material STAVAX, NAK80, SKD61 (Up to 52HRC) ELMAX, DC53, SKD11 Modified (Up to 62HRC) YXR3, SKH (Up to 70HRC) I RE(mm) LU Spindle Speed Feed Rate(mm)(min-1)(mm/min)ap (mm)pf (mm)Spindle SpeedFeed Rate(min-1)(mm/min)ap (mm)pf (mm)Spindle SpeedFeed Rate(min-1)(mm/min)ap (mm)pf (mm) 1.2 40,000 1,000 0.005 0.010 40,000 800 0.005 0.010 40,000 600 0.005 0.005 0.2 2.03.0 40,00040,000 800 0.005 0.010 40,0006000.0050.01040,0006000.005 0.010 40,0005000.0050.01040,0004000.005 0.0053000.0050.005 4.0 40,000 500 0.005 0.010 40,000 400 0.005 0.005 40,000 200 0.005 0.005 1.5 40,000 1,600 0.020 0.020 40,000 1,400 0.010 0.020 40,000 1,200 0.010 0.020 2.0 40,000 1,500 0.010 0.020 40,000 1,300 0.010 0.020 40,000 1,100 0.010 0.010 0.3 3.04.0 40,00030,000 1,4001,2000.0100.010 0.020 40,000 1,2000.01030,0001,0000.0100.0100.02040,000 1,0000.01030,0007000.0100.0050.0100.010 5.0 30,000 800 0.010 0.010 30,000 700 0.005 0.010 30,000 600 0.005 0.005 6.0 30,000 600 0.005 0.010 30,000 500 0.005 0.005 30,000 400 0.005 0.005 2.5 40,000 2,800 0.040 0.050 40,000 2,800 0.030 0.040 40,000 2,200 0.020 0.030 3.0 40,000 2,600 0.040 0.050 40,000 2,600 0.030 0.040 40,000 2,100 0.020 0.030 0.5 4.0 40,000 2,400 0.030 0.050 40,000 2,400 0.020 0.030 40,000 2,000 0.020 0.020 6.0 25,000 1,500 0.020 0.030 25,000 1,500 0.010 0.020 25,000 1,300 0.010 0.010 8.0 16,000 1,200 0.020 0.020 16,000 1,100 0.010 0.020 16,000 850 0.010 0.010 0.75 4.0 32,000 2,400 0.030 0.030 32,000 2,200 0.020 0.030 32,000 2,000 0.020 0.020 1.0 5.58.0 40,00032,000 4,0003,0000.0500.030 0.050 40,000 4,0000.05032,0002,6000.0300.0200.03040,000 3,0000.03032,0002,2000.0200.0100.0300.020 I141
