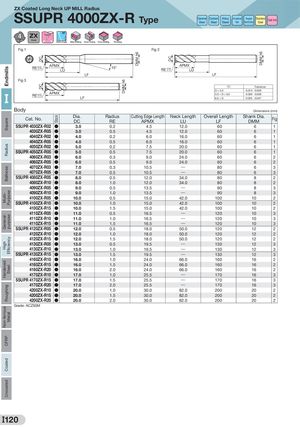

Общий каталог Sumitomo 2019 - 2020 - страница 804

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DCDC Stock DMM h6 DMM h6 DC DMM h6 ZX Coated Long Neck UP MILL Radius SSUPR 4000ZX-R Type General Carbon Alloy Pre-hardened Tempered Stainless Cast IronSteelSteelSteelSteelSteel/Die SteelSteel Corner Flutes Coat Helix Angle Side Milling Groove Finishing Face Milling Profiling Fig 1 Fig 2 RE+0.02 -0.10 APMX LU 15° APMXRE +0.02 -0.10LU LF LF Fig 3 DC Tolerance D ≤ 3.0 -0.014 -0.028 I RE+0.02 -0.10 APMX LF 3.0 < D ≤ 6.0 -0.020 -0.0386.0 < D-0.025-0.047 Body Dimensions (mm) Cat. No. Dia.DC RadiusRE Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSUPR 4030ZX-R02 ● 3.0 0.2 4.5 12.0 60 6 1 SSUPR 4030ZX-R05 ● 3.0 0.5 4.5 12.0 60 6 1 SSUPR 4040ZX-R02 ● 4.0 0.2 6.0 16.0 60 6 1 SSUPR 4040ZX-R05 ● 4.0 0.5 6.0 16.0 60 6 1 SSUPR 4050ZX-R02 ● 5.0 0.2 7.5 20.0 60 6 1 SSUPR 4050ZX-R05 ● 5.0 0.5 7.5 20.0 60 6 1 SSUPR 4060ZX-R03 ● 6.0 0.3 9.0 24.0 60 6 2 SSUPR 4060ZX-R05 ● 6.0 0.5 9.0 24.0 60 6 2 SSUPR 4070ZX-R03 ● 7.0 0.3 10.5 ― 80 6 3 SSUPR 4070ZX-R05 ● 7.0 0.5 10.5 ― 80 6 3 SSUPR 4080ZX-R05 ● 8.0 0.5 12.0 34.0 80 8 2 SSUPR 4080ZX-R10 ● 8.0 1.0 12.0 34.0 80 8 2 SSUPR 4090ZX-R05 ● 9.0 0.5 13.5 ― 90 8 3 SSUPR 4090ZX-R10 ● 9.0 1.0 13.5 ― 90 8 3 SSUPR 4100ZX-R05 ● 10.0 0.5 15.0 42.0 100 10 2 SSUPR 4100ZX-R10 ● 10.0 1.0 15.0 42.0 100 10 2 SSUPR 4100ZX-R15 ● 10.0 1.5 15.0 42.0 100 10 2 SSUPR 4110ZX-R05 ● 11.0 0.5 16.5 ― 120 10 3 SSUPR 4110ZX-R10 ● 11.0 1.0 16.5 ― 120 10 3 SSUPR 4110ZX-R15 ● 11.0 1.5 16.5 ― 120 10 3 SSUPR 4120ZX-R05 ● 12.0 0.5 18.0 50.0 120 12 2 SSUPR 4120ZX-R10 ● 12.0 1.0 18.0 50.0 120 12 2 SSUPR 4120ZX-R15 ● 12.0 1.5 18.0 50.0 120 12 2 SSUPR 4130ZX-R05 ● 13.0 0.5 19.5 ― 130 12 3 SSUPR 4130ZX-R10 ● 13.0 1.0 19.5 ― 130 12 3 SSUPR 4130ZX-R15 ● 13.0 1.5 19.5 ― 130 12 3 SSUPR 4160ZX-R10 ● 16.0 1.0 24.0 66.0 160 16 2 SSUPR 4160ZX-R15 ● 16.0 1.5 24.0 66.0 160 16 2 SSUPR 4160ZX-R20 ● 16.0 2.0 24.0 66.0 160 16 2 SSUPR 4170ZX-R10 ● 17.0 1.0 25.5 ― 170 16 3 SSUPR 4170ZX-R15 ● 17.0 1.5 25.5 ― 170 16 3 SSUPR 4170ZX-R20 ● 17.0 2.0 25.5 ― 170 16 3 SSUPR 4200ZX-R10 ● 20.0 1.0 30.0 82.0 200 20 2 SSUPR 4200ZX-R15 ● 20.0 1.5 30.0 82.0 200 20 2 SSUPR 4200ZX-R20 ● 20.0 2.0 30.0 82.0 200 20 2 Grade: ACZ50M I120
