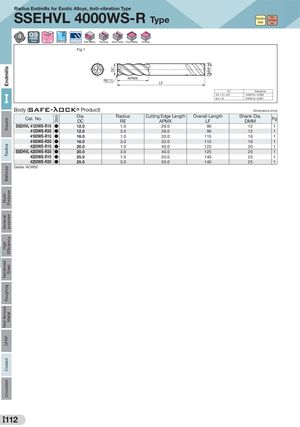

Общий каталог Sumitomo 2019 - 2020 - страница 796

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated Stock DC DMM h6 Radius Endmills for Exotic Alloys, Anti-vibration Type SSEHVL 4000WS-R Type Stainless Ti Alloy /Heat ResistantSteelAlloy Corner Flutes Coat Helix Angle Applicable Products Side Milling Grooving Groove Finishing Face Milling Profiling Fig 1 RE+0.02 -0.01 APMX LF DC Tolerance I 4.0 < D ≤ 6.0 -0.020 to -0.0386.0 < D-0.025 to -0.047 Body ( Product) Dimensions (mm) Cat. No. Dia.DC Radius Cutting Edge Length Overall LengthREAPMXLF Shank Dia.DMM Fig SSEHVL 4120WS-R10 ● 12.0 1.0 26.0 90 12 1 SSEHVL 4120WS-R30 ● 12.0 3.0 26.0 90 12 1 SSEHVL 4160WS-R10 ● 16.0 1.0 32.0 115 16 1 SSEHVL 4160WS-R30 ● 16.0 3.0 32.0 115 16 1 SSEHVL 4200WS-R10 ● 20.0 1.0 40.0 125 20 1 SSEHVL 4200WS-R30 ● 20.0 3.0 40.0 125 20 1 SSEHVL 4250WS-R10 ● 25.0 1.0 50.0 140 25 1 SSEHVL 4250WS-R30 ● 25.0 3.0 50.0 140 25 1 Grade: ACW52 I112
