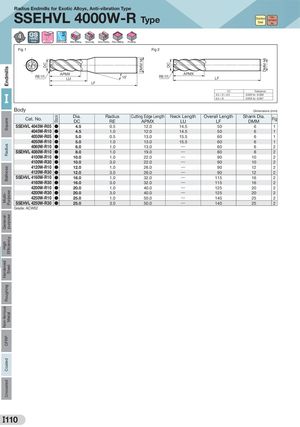

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC Stock DMM h6 DC DMM h6 Radius Endmills for Exotic Alloys, Anti-vibration Type SSEHVL 4000W-R Type Stainless Ti Alloy /Heat ResistantSteelAlloy Corner Flutes Coat Helix Angle Side Milling Grooving Groove Finishing Face Milling Profiling Fig 1 Fig 2 RE+0.02 -0.01 APMXLU APMX15˚RE+0.02-0.01LF LF DC Tolerance I 4.0 < D ≤ 6.0 -0.020 to -0.0386.0 < D-0.025 to -0.047 Body Dimensions (mm) Cat. No. Dia.DC Radius RE Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSEHVL 4045W-R05 ● 4.5 0.5 12.0 14.5 50 6 1 SSEHVL 4045W-R10 ● 4.5 1.0 12.0 14.5 50 6 1 SSEHVL 4050W-R05 ● 5.0 0.5 13.0 15.5 60 6 1 SSEHVL 4050W-R10 ● 5.0 1.0 13.0 15.5 60 6 1 SSEHVL 4060W-R10 ● 6.0 1.0 13.0 ― 60 6 2 SSEHVL 4080W-R10 ● 8.0 1.0 19.0 ― 80 8 2 SSEHVL 4100W-R10 ● 10.0 1.0 22.0 ― 90 10 2 SSEHVL 4100W-R30 ● 10.0 3.0 22.0 ― 90 10 2 SSEHVL 4120W-R10 ● 12.0 1.0 26.0 ― 90 12 2 SSEHVL 4120W-R30 ● 12.0 3.0 26.0 ― 90 12 2 SSEHVL 4160W-R10 ● 16.0 1.0 32.0 ― 115 16 2 SSEHVL 4160W-R30 ● 16.0 3.0 32.0 ― 115 16 2 SSEHVL 4200W-R10 ● 20.0 1.0 40.0 ― 125 20 2 SSEHVL 4200W-R30 ● 20.0 3.0 40.0 ― 125 20 2 SSEHVL 4250W-R10 ● 25.0 1.0 50.0 ― 140 25 2 SSEHVL 4250W-R30 ● 25.0 3.0 50.0 ― 140 25 2 Grade: ACW52 I110
